High shear mixer homogenizing mixer vacuum emulsifying mixer machine

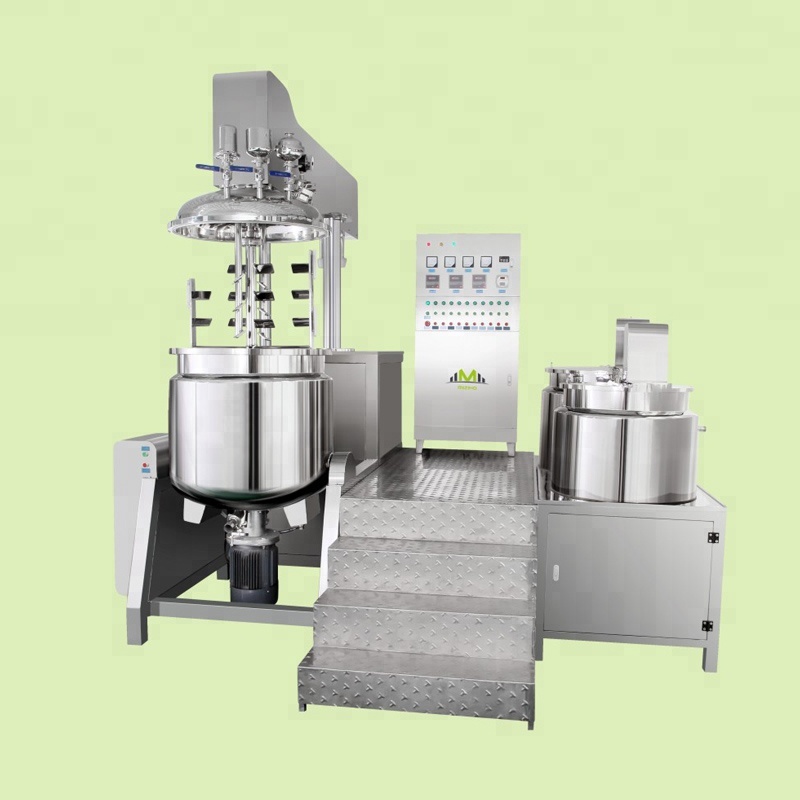

MZH-V500L Vacuum Emulsifying Mixer

NO

Name

Technical parameters

Main brand

1

Main pot

◆Design volume:625L   Working volume：500L

2

Material &Thickness

◆Inner Layer:5mm (Polishing: 400MESH)

Cover:6mm,

Stirring blade:8mm,

SUS316L

◆Middle Layer:5mm；

SUS 304-2B

◆Cotton insulation is expanded perlite

◆Out Layer:3mm (Polishing:400MESH)

SUS 304-2B

◆Pot Bottom: Discharge hole, Temperature detection hole.

3

Stirring Way

◆Anchor agitator stirring scraper

SUS316L

◆Scraping bladePTFEmaterial, snapping stirring the pot wall, so the material does not stick pot wall mixed.

Japan Sumitomo

◆Bottom temperature probe bulb to 20mm can accurately measure the temperature of the material.Temperature Sensor.

Japan Omron

◆Up-mixing Motor:4KW；

ABB or Siemens

◆Up-mixingFrequency control: 0～83r/min

Delta

4

Homogeneous

◆Homogenizer as SUS 316L solid stainless steel material, by laser machining process from several species such as helical vane cavity structure and the special work in strict accordance with Japan beauty he company to produce high precision, strong shear.

Japan Technology

◆Homogenizer Motor :7.5KW

 ABB or Siemens

◆Homogenizer Inverter: 0-3600r/min

Delta

5

Sealing

◆Dharma Bluesealed with silicone rubber O-ring

Germany Burgmann

◆Homogenizer using the world famous German high-speedMechanical seal Burgmann.

Germany Burgmann

6

Heating way

◆Steam heating, Water test pressure 0.4Mpa,working Pressure＜0.15-0.25Mpa

7

Discharge way

◆Spout with sanitary pot bottom valve.

◆Can through Variety pump discharge.

8

Water pot

Design volume:500L   Working volume:400L

◆Inner Layer:6mm (Polishing: 400MESH)

  Middle Layer:6mm；Out Layer:3mm (Polishing:400MESH)

316L&304

◆Up-mixing  Motor:3KW;

  Inverter JapanPanasonic0-900RPM；

ABB or Siemens

◆Temperature Sensor.

Japan Omron

9

Vacuum System

◆Using water ringvacuum pump to avoid pump inhale oil, foam etc., causing blockage.

Shanghai zhou xin

◆Vacuum pump Motor:3KW

◆Vacuum suction tube is304-2B connected.

10

Oil pot

Design volume:310L   Working volume:250L

◆Inner Layer:6mm (Polishing: 400MESH)

  Middle Layer:6mm；Out Layer:3mm (Polishing:400MESH)

316L&304

◆Up-mixing Motor:2.2KW;

  Inverter 0-900RPM；

ABB or Siemens

◆Temperature Sensor.

Japan Omron

11

Electric Box

◆Electrical control box for the SUS304-2B, Appearance of sand board.

◆Main Eectric elements of world brand; Button by Japan Fuji,  Schneider or Omron for Meter and Sensor. One the control panel should be able to adjust and display the stirring speed, The pot temperature, The Temperature of the upper and lower limits control, Emulsification time and slow mixing time settings and other functions.

Main electric Schneider

Net weight

◆1850kg（Only for standard equipment）

PowerV.

◆380V，60HZ。

GMP Standard

◆Machine platform is welded stainless steel square tube. Welding surface polishing treatment. SUS304-2B Prevent slip Plate on the stirs and platform.
