Suit to Powder: milk powder, flour, seasoning powder, medicine powder, protein powder, etc.
Item NO.:
MZH-FS001Market Price:
$31650Price:
$28650/SetProduct Origin:
ChinaShipping Port:
Guangzhou HuangpuLead Time:
35 working daysMULTI-LANE BACK SEALING POWDER PACKING MACHINE
1、PACKAGING MATERIAL
BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP,
Paper/Polyethylene, etc.
2、APPLICATION
Suit to powder: milk powder, flour, seasoning powder, medicine powder, protein powder, etc.
3、FEATURES
3.1 The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;
3.2 Equipped with safety protection, in line with enterprise safety management requirements;
3.3 Electric components are general accessories for imported big brands. Siemens PLC control, touch screen control, automatic control capability of the whole machine, high reliability and intelligence, high speed and high efficiency;
3.4 Independent temperature control system is adopted, and the temperature control is accurate; the sealing is beautiful and smooth;
3.5 The servo clamping film, film pulling system and color code control system can be automatically adjusted through the touch screen, and the operation of sealing deviation correction and incision deviation correction is simple;
3.6 It can be packed 4-12 lines according to the width of the bag. The machine can be connected to the subsequent dosing line and the automatic cartoning machine to achieve the packing and cartoning automation production line.

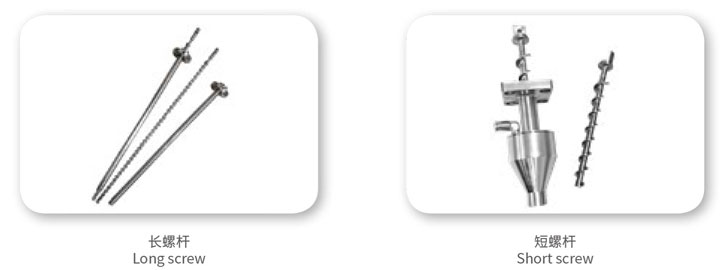

4、FILLING METHOD
5、TECHNICAL SPECIFICATION
|
Model |
MZH-FS2.0 |
MZH-FS3.0 |
MZH-FS4.0 |
|
|
Track Number |
4-10 Track |
4-12 Track |
4-12 Track |
|
|
Filling Method |
Auger filling by servo motor |
|||
|
Capacity |
30-45 cycle/min（According to the material condition） |
|||
|
Film Width & Thickness |
Max: 520mm, 0.06-0.01mm |
Max: 720mm, 0.06-0.01mm |
Max: 820mm, 0.06-0.01mm |
|
|
Sachet Size |
L: 45-160mm W: 17-55mm |
L: 45-180mm W: 17-80mm |
L:45-180mm W: 17-80mm |
|
|

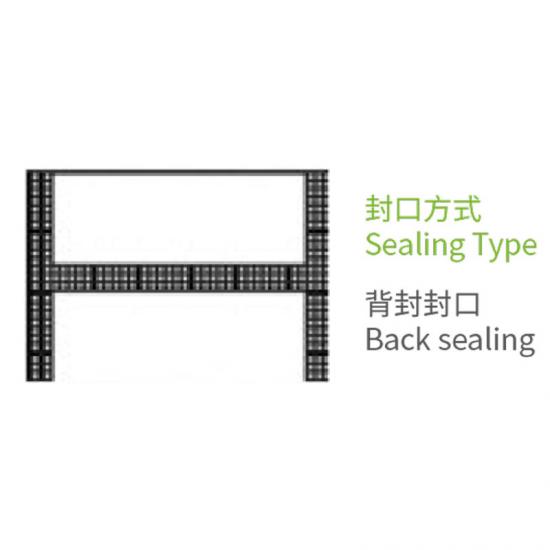

Sealing Type |
Back sealing/Stick bag |
|||
|
Cutting Type |
1.Straight cutting 2.Zig zag cutting 3. Round cutting |
|||
|
Consumption & Voltage |
0.8MPa 0.8m³/4.5kW |
0.8MPa 0.8m³/5.5kW |
0.8MPa 0.8m³/6.5kW |
|
|
Power |
AC380V Three phase,AC220V Single phase,50-60Hz |
|||
|
Dimension |
L1400*W2000*H2800mm |
L1500*W2000*H2800mm |
L1600*W2100*H2800mm |
|
|
Total Weight |
1000kg |
1200kg |
1300kg |
|
