Automatic vertical multi material granule powder sachet packing machine

This Automatic vertical multi material granule powder sachet packing machine is applicable to the food industry particle x powder x liquid x sauce and particle powder material combination of items such as measurement packaging

Item NO.:
MZH-65BDS
Payment:
T/T D/P D/A L/C MoneyGram
Product Origin:
Guangzhou China
Color:
Stainless steel 304/316
Shipping Port:
Huangpu
Lead Time:
35 working days

Products Description

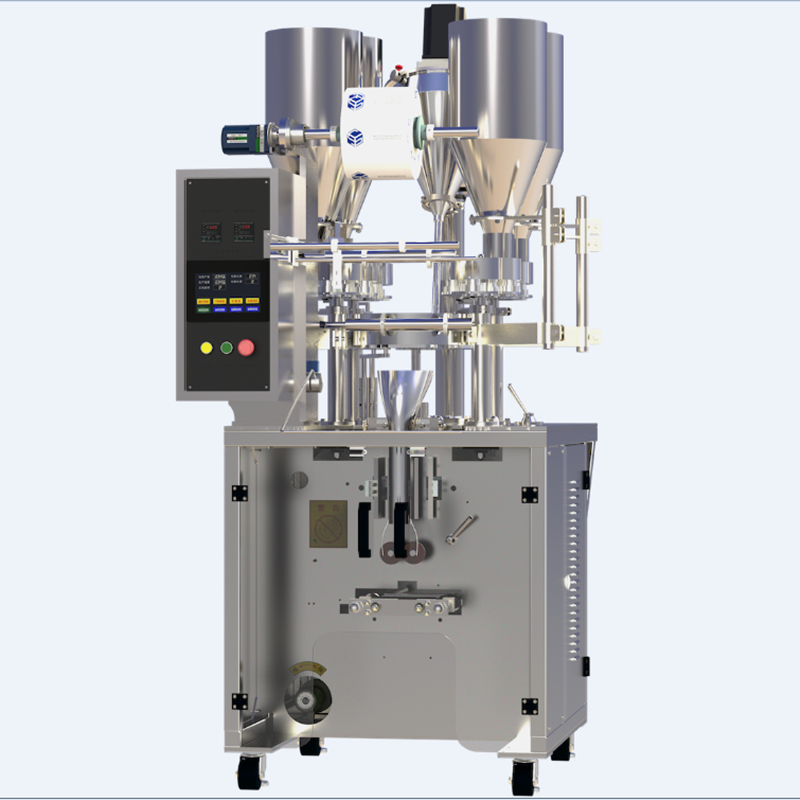

Automatic vertical multi material granule powder sachet packing machine

Customized And OEM Service Available

Vertical Multi Material Sachet Packing Machine

Detailed introduction

1.This Vertical Multi Material Sachet Packing Machine has a variety of blanking systems, can choose a variety of good flow of particles or powder into the bag at the same time.For example, bear, flower and sugar are packed in one bag by weight.It can be customized to your bag. And can automatically complete the bag-making, measuring, blanking, sealing, cutting, counting, according to customer requirements can be configured to print the batch number and other functions

2.This Granule Packing Machine PLC touch screen operation control, bag length, driving a stepper motor control performance stability * detection accurate adjustment convenient o intelligent temperature controller, PID control, can reduce the error range of temperature control within 1 Š

3.Blanking method: according to the customer demand selection (attached blanking structure)

4.Measuring range: 1-10 g(2-30ml)o for single material

5.Form of sealing: three-side sealing * back sealing * four-side sealing

6.Packaging speed: 30-60 packages per minute (depending on the characteristics of materials)

7.Outer bag size: length: 30-170 (mm)o width: 30-140 (mm)

8.Power source :220V/ 50Hz/ 1.4kw

9.Total weight: about 500 KG

10.Dimensions: 800*1100*1750(mm) (l*w*h)

Electrical configuration

NO	Name of electrical accessories	Brand
1	display	Yonghong
2	PLC	Yu sheng
3	Temperature control table	Hui bang
4	Stepper motor	Lei sai
5	switch	Chint
6	Proximity switch	Kori
7	Solid state relay	Meigeer
8	Main motor	Thunis
9	Slow down box	Jiacheng
10	Color scale sensor	Julong
11	Inverter	Yonghong
