APPLISCATION
The Oral Liquid Filling Sealing Machine is suitable for unit metering of medicine, dairy product, health product,food, beverage, cosmetics, perfume, pesticide, fruit pulp etc.
Item NO.:
MZH-FAPayment:
TT/DP/LC/CashProduct Origin:
GuangzhouColor:
ssShipping Port:
HuangpuLead Time:

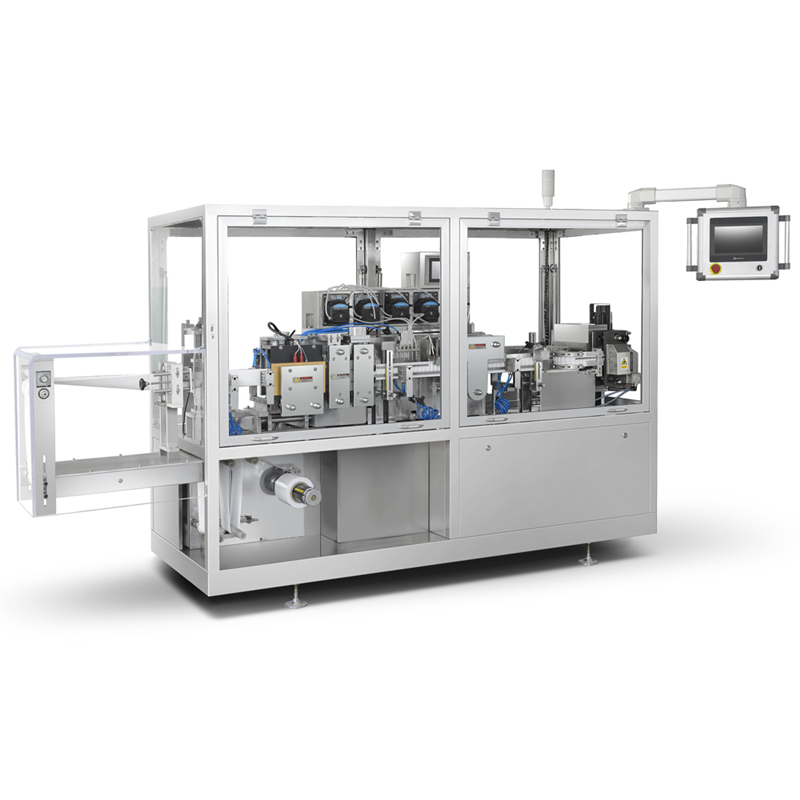

55 working daysHigh Speed Oral Automatic Liquid Filling Sealing Machine
Customized And OEM Service Available
Performance and Features
1.The Liquid Filling and Sealing Machine HC high speed, high precision and high-end motion controller. Stepless frequency conversion speed control. The servo motor controls the membrane pulling device.
2. Man-machine interface device, simple operation.
3. Automatic unwinding and film cutting. There are photoelectric positive and negative patterns on the plate function. The products are exquisite and meet the high standard packaging requirements.
4. Electronic peristaltic pump device and mechanical pump piston pump control, easy to adjust.
5. Cosmetic Filling and Sealing Machine Filling accuracy is correct, filling does not drip, does not foam, does not overflow.
6. The parts contacting with the drug are made of high quality stainless steel 316L, and the machine cover is all SUS304 stainless steel. Comply with GMP standards.
7. The bottom of the bottle is flat and can stand up.
8. Cutter alone double servo motor control, to a few a plate can be cut.
Main technical parameter
|
Max. forming depth |
12mm |
|
Punchfrequency |
1-30次 |
|
Packing material |
PVC/PE,PET/PE(0.2-0.4)260✖mm |
|
Filling volume |
0.1-200ml |
|
Toal power supply power |
7KW |
|
Voltage |
380V/50Hz |
|
Machine weight |
1000Kg |
|
Overall dimension (L*W*H) |
3380×950×1800(mm) |
