Welcome to visit our factory!
Item NO.:
MZH-FCMarket Price:
$5160Price:
$5160Price Range:
1 - 10/$5160Product Origin:
ChinaSingle head self-priming bag filling and capping machine with 60L gear pump

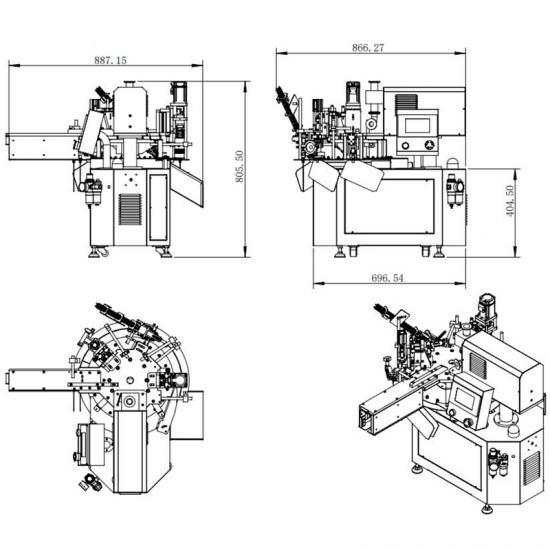

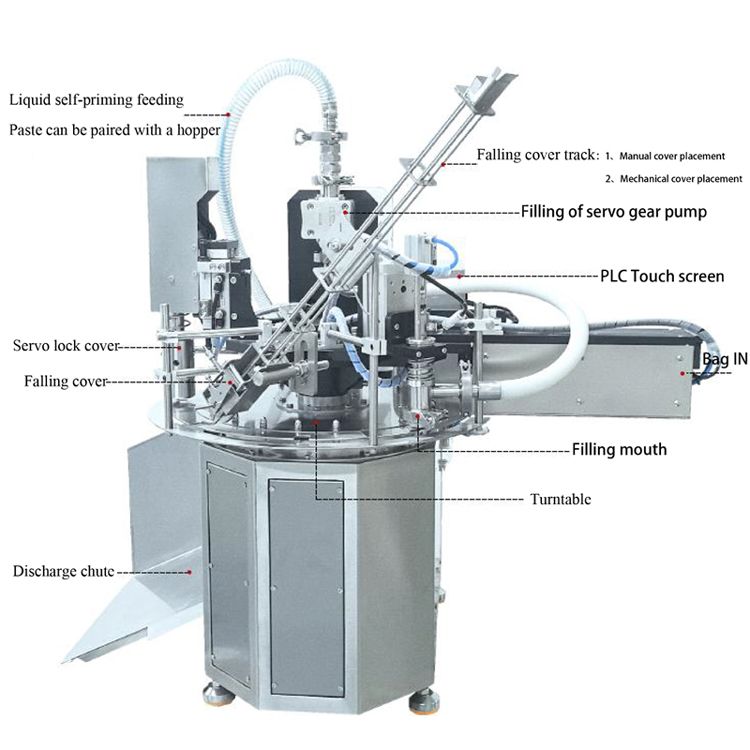

1. Product schematic diagram
2. Features and structure characteristics
(1) Chinese and English touch screen display, intuitive and simple operation.
(2) The PLC computer control system runs more stably and can adjust any parameters without stopping the machine.
(3) It can store 20 sets of parameters, making it more accurate to change varieties.
(4) Using servo motor filling for more accurate precision.
(5) Adopting servo motor lock cover, better control and adjustment of tightening force
(6) Production bag filling, lid locking, and coding (optional) can be completed in one go.
(7) Different packaging material specifications can replace molds to achieve compatibility (optional)
(8) Machine program reserved air source replenishment system program control (can be self provided or ordered as needed)
3. Scope or application
Suitable for liquid or medium viscosity paste like objects such as toiletries, food, cosmetics, pharmaceuticals, chemical products, etc.
4. Host Parameters
|
Model |
Single head self-priming bag filling and locking machine 60L |
|
Packaging Products |
Liquid, paste |
|
Filling Pump |
60L gear pump |
|
Filling Specifications |
30-2000ML |
|
Bag Width |
50-330mm |
|
Bag Length |
50-330mm |
|
Production Speed |
20-30 bags/minute (actual material viscosity and filling capacity affect actual production capacity) |
|
Voltage Power |
220V 50HZ |
|
The overall power of the machine is approximately 1800W |
|
|
Net weight of the whole machine is approximately 60KG |
|
|
Aluminum parts |
Aluminum disk anodizing |
|
Rack material |
304 stainless steel |
|
Material of contact material |
316 stainless steel |
|
Rotary principle |
Cam indexers |
|
Overall size mm |
Approximately 890 in length, 870 in width, and 805 in height |
|
Working principle |
Manual bagging - automatic bagging - automatic filling - manual lid placement - automatic lid locking - automatic bag removal |
5. Product Details Description
