The whole Filling Machine is made of stainless and anti-corrosion materials. This Full-auto Filling Machine can be suitable for the filling requirements of bottles(containers)with different shape and liquid non containing gases.
Item NO.:
MZH-F2Payment:
L/C,D/A,D/P,T/T,Western UnionProduct Origin:
ChinaShipping Port:
haungpu,guangzhouLead Time:

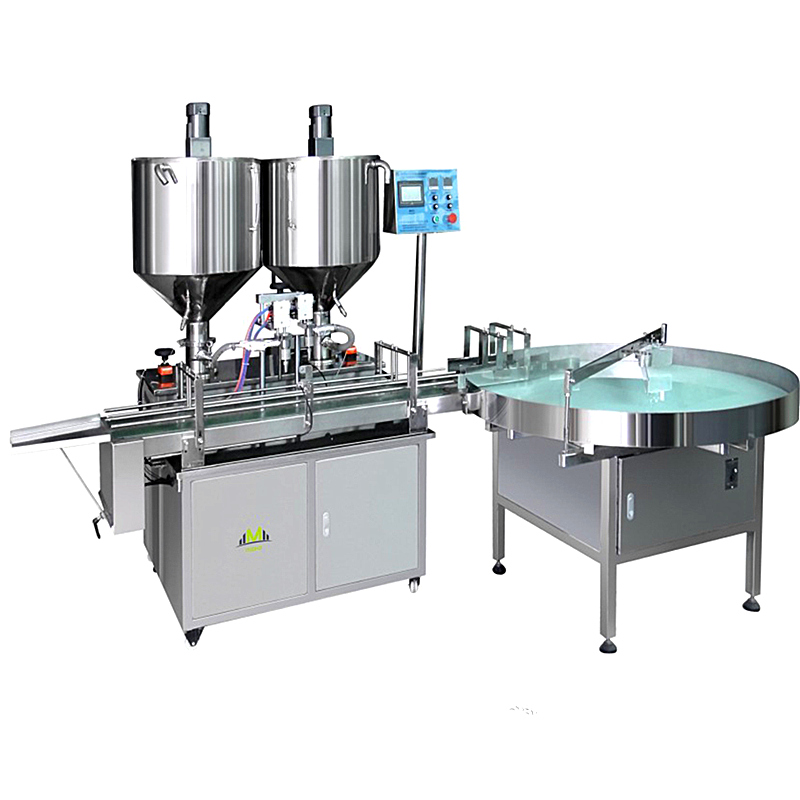

28 working days2 nozzles ketchup full-auto filling machine
Customized And OEM Service Available
Description:
This machine is made of high precision Bottle Filling Machine to provide indexing equal-dividing disk positioning plug cover;acceleration cam drive provides capping head lifting; Rotary Filling Machine constant torque capping;high precision screw metering filling; without touch screen control. Bottle filling,without inner plug, the outer cover. With accurate positioning, stable transmission, protective cap, accurate in measurement. The advantages of simple operation, fully in line with the GMP requirements of the national.
1.it can be conveniently maintained. it can be easily disassembled asssembled and cleaned without the need of using any tools, the adjustment is convenient, when adjusting the metering ,first adjust the value to be near the metering at a wide range ,then make the fine adjustment, ti can realize accyrate metering and make sure no filling is made in case of on bottle or bottle shortage.
2. full automatic bottle loading and filling machine filling systerm of the machine adopts the ferrule type quick installed sanitary connector, the whole cylinder can easilr assembled and disassembled, cleaned without the need of using any tools, it is featured by simple structure design and convenient operation and maintenance.
Model |
MZH-F 2 nozzles ketchup full-auto filling machine |
Filling Range |
50-500(ml) |
Bottling Speed |
30-80 (B/MIN) |
Accuracy Of Gauge |
±1% |
Nominal Power |
0.75 (kw) |
Working Voltage |
220V |
Working Pressure |
5~7(kg/cm) |
Gas Consumption |
0.5 (m3/min) |
Net Weight |
650kg |
Overall Dimension |
3000×870×1700mm |
Technical parameter
Filling volume(ml) |
Productivity(b/h) |
Filling speed |
Filling precision |
Air supply |
10-120ML |
1500-3500 |
adjustable |
≤ ± 1% |
0.4-0.8mpa |
25-250ML |
1500-3000 |
adjustable |
≤ ± 1% |
0.4-0.8mpa |
100-1000ML |
1500-2500 |
adjustable |
≤ ± 1% |
0.4-0.8mpa |
250-2500ML |
1500-2500 |
adjustable |
≤ ± 1% |
0.4-0.8mpa |
500-5000ML |
1000-2000 |
adjustable |
≤ ± 1% |
0.4-0.8mpa |

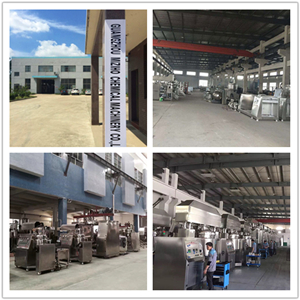

We are leading manufacturer in China which specialized in Cosmetic machinery, Food machinery and Pharmacy machinery products supplying for over 15 years; good quality and professional service help us gain many good reputation all over the world;
we hope you can join us in the future.
Package: Plywood Case Packing
