Apply for regular granular packing, such as sugar, soybean, rice, corn, sea salt, edible salt and plastic products, etc.
Item NO.:
MZH-FS004Market Price:
$23580Price:
$21580/SetProduct Origin:
ChinaShipping Port:
Guangzhou HuangpuLead Time:
35 working daysFull Automatic Vertical Volumetric Cup Filler Type Granule

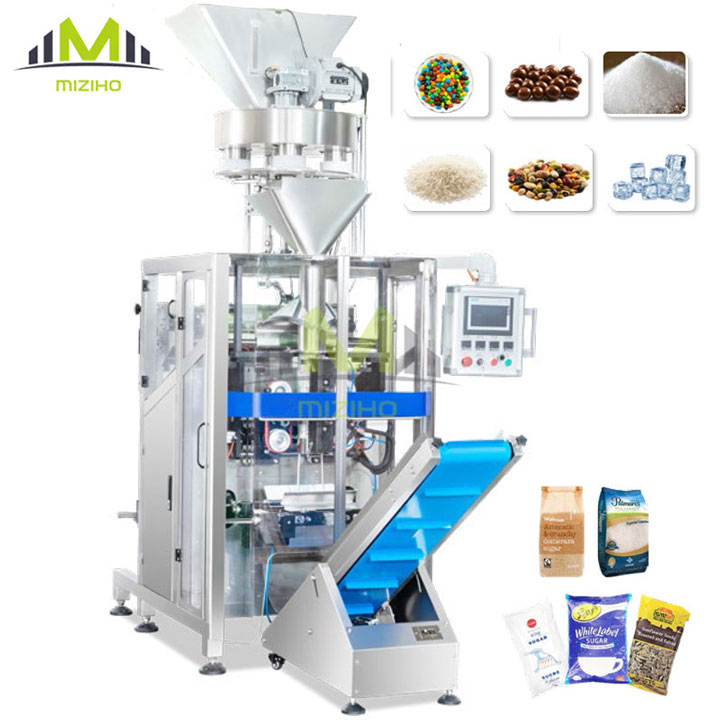

Sachet Packing Machine
APPLICATION
Apply for regular granular packing, such as sugar, soybean, rice, corn, sea salt, edible salt and plastic products, etc.
FEATURES
1. The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;
2. Equipped with safety protection, in line with the requirements of enterprise safety management;
3. Adopt independent temperature control system, temperature control is accurate, ensure the sealing is beautiful and smooth;
4. Servo motor film drawing, PLC control, touch screen control, automatic control ability of the whole machine, high reliability and intelligence, high speed, high efficiency;
5. Double belt film drawing, film drawing system and color code control system can be automatically adjusted by touch screen, simple operation for sealing and notching correction;
6. The touch screen can store a variety of packaging process parameters of different products, and can be used at any time without adjustment when replacing products;
7. The machine is equipped with fault display system, which can help troubleshoot in time and reduce the requirement for manual operation;
8. The whole set of equipment includes the whole packaging process from material conveying, metering, printing, bag-making, filling, sealing, cutting and product conveying;
9. Pillow bag, pin bag, hanging hole bag and bag can be made according to customer needs;
10. The machine adopts closed mechanism to prevent dust from entering the machine effectively.

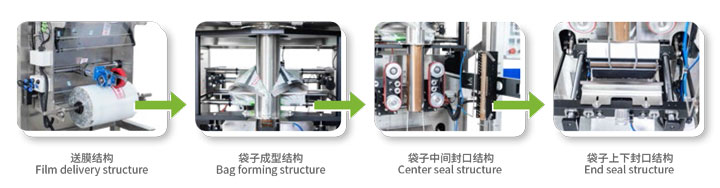

FOUR CORE DESIGN INFLUENCES THE STABILITY OF MACHINE
TECHNICAL SPECIFICATION
|
Model |
MZH-SF2.0T |
MZH-SF3.0T |
|
Max Width Of Roll Film |
≤ 520mm |
≤ 720mm |
|
Bag Sizes |
Bag width: W 100-250mm Bag length: L 100-400mm |
Bag width: W 80-350mm Bag length: L 480mm |
|
Packing Speed |
20-45 bags/min |
20-30 bags/min |
|
Packing Material |
OPP/CPP, OPP/PE, PET/PE, PE |
OPP/CPP, OPP/PE, PET/PE, PE |
|
Bag Type |
Pillow bag/Gusset bag/Quad seal bag |
Pillow bag/Gusset bag/Quad seal bag |
|
Consumption |
6-8kgf/cm², 0. 6 m³/min |
6-8kgf/cm2 , 0.6m3 /min |
|
Power And Voltage |
AC380V Three phase, 50-60Hz, 4.25kW |
AC380V Three phase, 50-60Hz, 5.75kW |
|
Total Weight |
1000kg |
1100kg |
|
Dimension |
L3883*W1215*H3237mm |
L3980*W2250*H4200mm |
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
