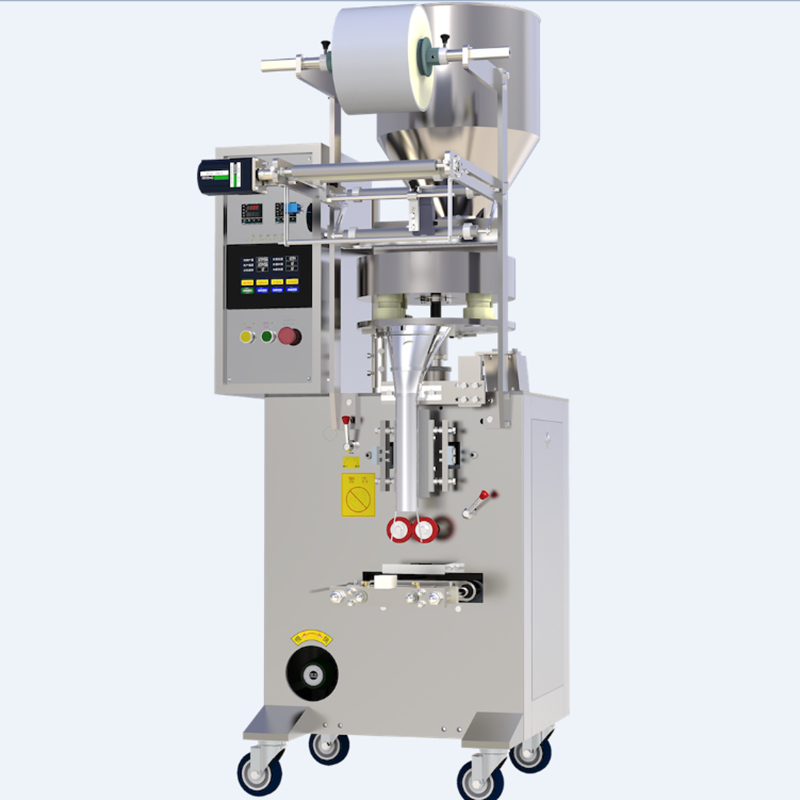

Automatic vertical packing machine aluminum plated plastic film packaging

This Automatic Intermittent Vertical Packing Machine Use For Aluminum Plated Plastic Film Packaging is suitable for food particles * powder * liquid * sauce body and other items of measurement packaging


  • Item NO.:

    MZH-61
  • Payment:

    T/T D/P D/A L/C MoneyGram
  • Product Origin:

    Guangzhou China
  • Color:

    Stainless steel 304/316
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 working days
Products Description

Automatic vertical packing machine aluminum plated plastic film packaging

Customized And OEM Service Available

Intermittent Vertical Packing Machine



Detailed introduction

1.This Automatic vertical packing machine aluminum plated plastic film packaging can automatically complete the bag-making, measuring, blanking, sealing, cutting, counting, according to customer requirements can be configured to print the batch number and other functions.Machine is 304/316 stainless steel, in line with GMP factory standard.

2.Adopts PLC touch screen operation control, bag length, driving a stepper motor control performance stability * detection accurate adjustment convenient o intelligent temperature controller, PID control, can reduce the error range of temperature control within 1 Š. Stable operation, low noise, no need of lubricating oil, save electricity.

3.Blanking method: matching according to customer demand (attached blanking structure drawing)

4.Measurement range: 1-100 g(4-300 ml)

5.Packaging speed: 30-60 packages per minute (depending on the characteristics of materials)

6.sealing form: three side sealing x back sealing x four side sealing

7.Size of outer bag: length :30-170(mm) width :30-140(mm)

8.Power source :220V/ 50Hz / 1.4k *

9.Total weight: about 400 KG

10.Dimensions: 740*940*1750(mm)  (l*w*h)


Electrical configuration

NO

Name of electrical accessories

Brand

1

display

Yonghong

2

PLC

Yu sheng

3

Temperature control table

Hui bang

4

Stepper motor

Lei sai

5

switch

Chint

6

Proximity switch

Kori

7

Solid state relay

Meigeer

8

Main motor

Thunis

9

Slow down box

Jiacheng

10

Color scale sensor

Julong


A free consultation

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
