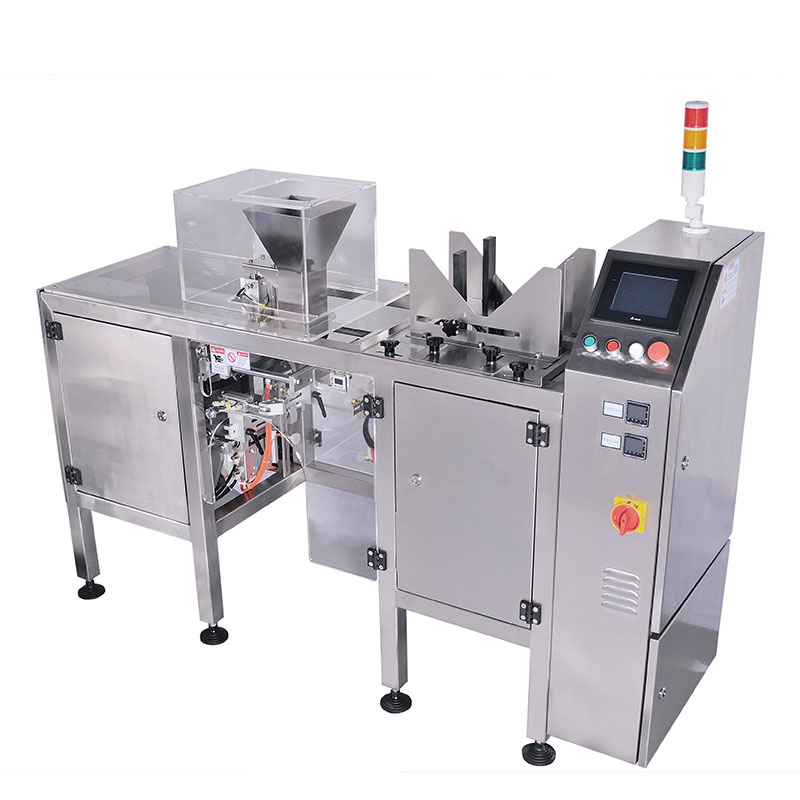

Automatic Red jujube corn doy bag packing machine

This automatic Red jujube corn Doy Bag Packing Machine suitable for all kinds of nuts, large particles, popcorn, corn, jujube and other Corn Packing Machine prefabricated bags packaging.

  • Item NO.:

    MZH-DB-300
  • Payment:

    T/T D/P D/A L/C MoneyGram
  • Product Origin:

    Guangzhou China
  • Color:

    Stainless steel 304/316
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 working days
Products Description

Automatic Red jujube corn doy bag packing machine

Customized And OEM Service Available

Doy Bag Packaging Machine


Details are introduced

1. This automatic Red jujube corn Doy Bag Packing Machine easy operation, automatic replacement of doy bag

2. The Zipper Lock Bag Packing Machine Low maintenance cost/modular replacement of components;

3. CE certification.

Basic function

1. When the safety key interlock switch is pulled out, the machine will stop running;

2. Bag prompt function of this machine;

3. The self-diagnosis function fails to open the bag (the bag can be reused);In this case, the machine will not fill and seal it and it will retake the bag;

4. Hopper positioning (anti-falling) function;

5. Cylinder heater fault alarm function;

6. Cylinder fault alarm function.

Basic Configurations

1. Touch Screen: China Kinco 7 inches color touch screen;

    Languages: Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);

2. PLC: Japan Panasonic;

3. Cylinder: Taiwan Airtac (Can be upgraded to Japan SMC);

4. Vacuum Generator: China Airbest (Can be upgraded to Vacuum Pump);

5. Vacuum Component: Japan SMC;

6. Vacuum Pressure Gauge: Japan SMC;

7. PID Temperature Controller: Japan Omron;

8. Electrical Component: Schneider / Omron;

9. Safety Key Interlock Switch;

10. The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;

11. The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).



Technical parameters




Model

MZH-DB-300

1.Bag Material :

Multilayer Composite Premade Bag (e.g.:PET/PE)

2.Bags Type :

3 Side Seal Bag,Stand-up Bag

3.Upgradable Bag Type :

Gusset Bag,Zipper Bag,Flat Bottom Pouch(Need additional purchase of functional device)

4.Size Range:

80mm≤W≤300mm   100mm≤L≤300mm

5. Speed:

0~15bags/min

6. Sealing Type:

Straight grain, pitch is 1mm (Optional reticulate)

7. Sealing Width:

10mm(5--20mm can be customized)

8. Voltage:

220V, Single-phase, 50/60HZ, 1.2KW

9. Air Pressure:

0.65Mpa

10. Air Consumption:

0.3m³/min(Standard machine, no additional function)

11. Body Dimension:

1770*510*1230mm

12. Packing Dimension:

1860*600*1550mm(Export non-fumigation wooden case)
