Suit to liquid: sport gel, sauce, honey, medicinal liquid, cream, jelly, etc.
Item NO.:
MZH-FS002Market Price:
$32580Price:
$29850/SetProduct Origin:
ChinaShipping Port:
Guangzhou HuangpuLead Time:

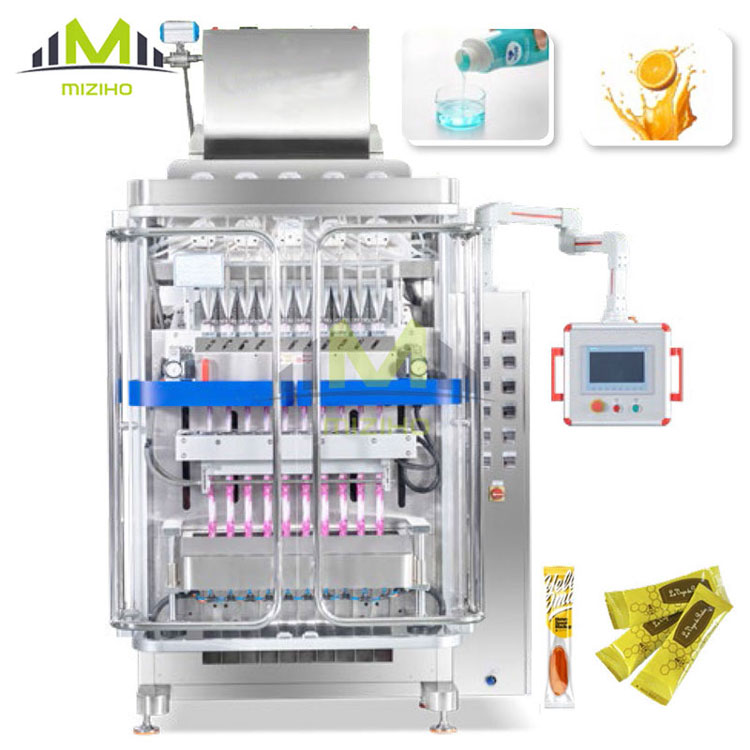

35 working daysMULTI-LANE BACK SEALING LIQUID PACKING MACHINE
1. PACKAGING MATERIAL
BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP,
Paper/Polyethylene, etc.
2. APPLICATION
Suit to liquid: sport gel, sauce, honey, medicinal liquid, cream, jelly, etc.
3. FEATURES
3.1 The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical
GMP hygiene standards;
3.2 Equipped with safety protection, in line with enterprise safety management requirements;
3.3 Electric components are general accessories for imported big brands. Siemens PLC control,
touch screen control, automatic control capability of the whole machine, high reliability and intelligence, high speed and high efficiency;
3.4 Independent temperature control system is adopted, and the temperature control is accurate;
the sealing is beautiful and smooth;
3.5 The servo clamping film, film pulling system and color code control system can be automatically adjusted through the touch screen, and the operation of
sealing deviation correction and incision deviation correction is simple;
3.6 It can be packed 4-12 lines according to the width of the bag. The machine can be connected to the subsequent dosing line and the automatic cartoning machine to achieve the packing and cartoning automatic production line.
4. FILLING METHOD
5. TECHNICAL SPECIFICATION
|
Model |
MZH-LSF2.0S |
MZH-LSF3.0S |
MZH-LSF4.0S |
|
Track Number |
4-10 Track |
4-12 Track |
4-12 Track |
|
Filling Method |

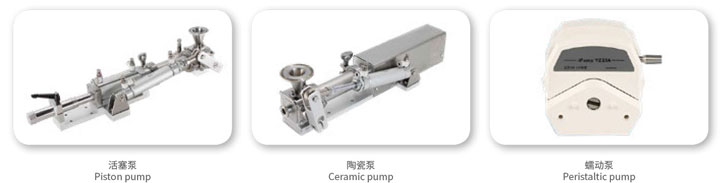

Peristaltic pump/ Piston pump/ Ceramic pump |
||
|
Capacity |
30-45 cycle/min（According to the material condition） |
||
|
Film Width & Thickness |
Max: 520mm, 0.06-0.01mm |
Max: 720mm, 0.06-0.01mm |
Max: 820mm, 0.06-0.01mm |
|
Sachet Size |
L: 45-160mm W: 17-55mm |
L: 45-180mm W: 17-80mm |
L: 45-180mm W: 17-80mm |
|

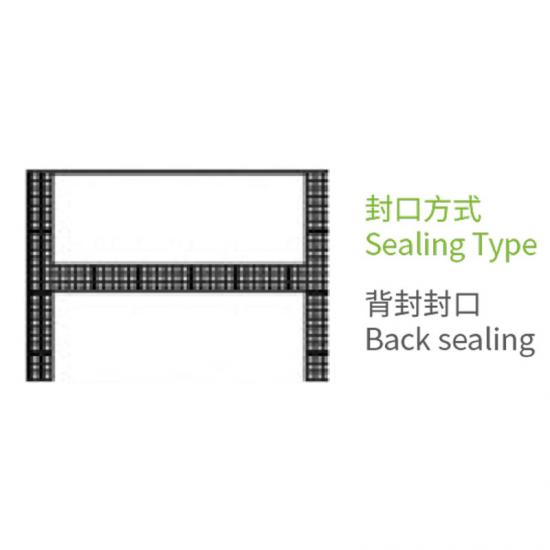

Sealing Type |
Back sealing/Stick bag |
||
|
Cutting Type |
1. Straight cutting 2.Zigzag cutting 3.Round cutting |
||
|
Consumption & Voltage |
0.8MPa 0.8m³/4.5kW 0.8MPa 0.8m³/5.5kW 0.8MPa 0.8m³/6.5kW |
||
|
Power |
AC380V Three phase, AC220V Single phase, 50-60Hz |
||
|
Dimension & Total Weight |
L1400*W2000*H2400mm 1000kg |
L1500*W2000*H2500mm 1100kg |
L1600*W2100*H2600mm 1200kg |
