MZH Vacuum Emulsifying Mixer Series is composed of emulsification boiler (fluctuating cover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. etc.
Item NO.:
MZH-50LPayment:
L/C,D/A,D/P,T/T,Western Union,MoneyGramProduct Origin:
ChinaShipping Port:
haungpu,guangzhouLead Time:

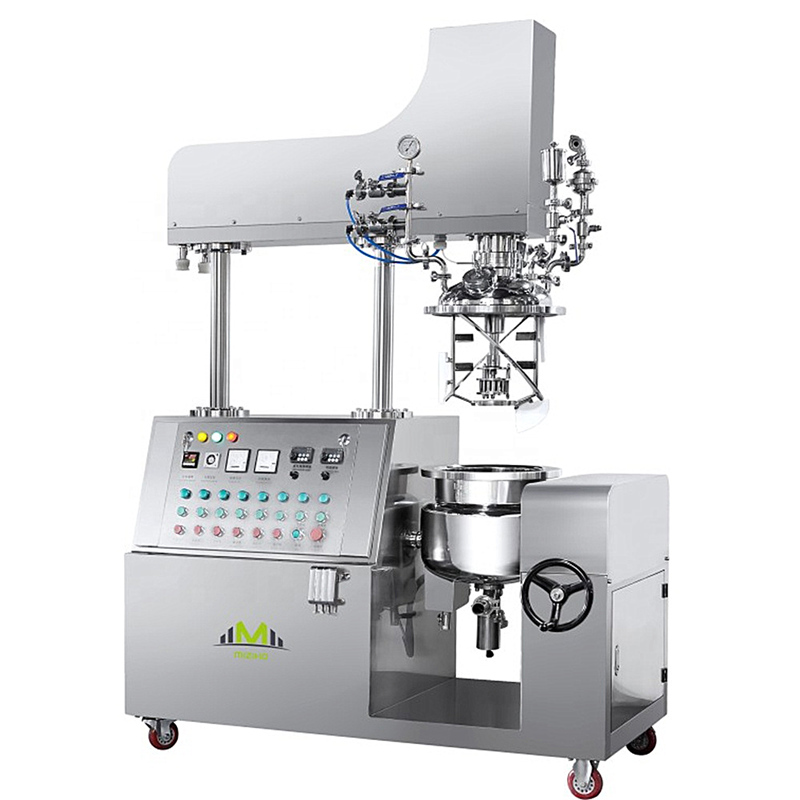

45days50L Cosmetic cream making machine Vacuum Emulsifying mixer
Customized And OEM Service Available
Machinery Introduction:
MZH Vacuum Emulsifier Machine is a vacuum deoxygenation, mixing, homogenization, heating, electric control and other functions in one, the equipment is composed of vacuum homogenization emulsifier, vacuum system, lifting system.The vacuum emulsifier can also be matched with oil and water kettles according to the production process requirements.Material after hot water boiler, oil boiler heating and mixing and then draw lots to the emulsion boiler by vacuum pump, intermediate (fixed) agitator and ptfe scraper residue agitator emulsion boiler sweep boiler wall residue, according to high shear wheel and cutting box for strong cut, impact, no rules of mobility.The material is quickly cut into 200nm-2um particles in the cutting gap. As the emulsifying boiler is in a vacuum state, the material generated in the stirring process seems to disappear in time.
Features:

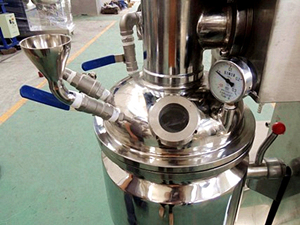

Detail display:

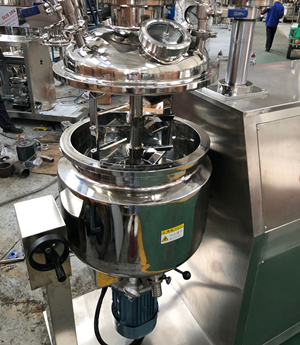

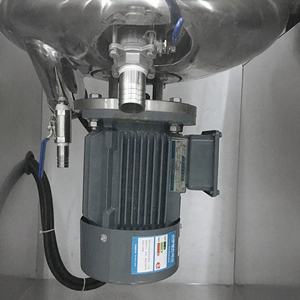

Main pot Motor
Technical Parameters:
|
Model |
MZH-30L |
MZH-50L |
|
Main Boiler |
37L |
62L |
|
Water Tank Volume |
24L |
40L |
|
Oil Tank Volume |
15L |
25L |
|
Main Boiler Jacket Material & Thickness |
Inside:316L(5mm) Mid:304(5mm)
Outside:304(3mm) |
|
|
Water Tank Volume & Thickness |
Inside:316L(3mm) Mid:304(3mm)
Outside:304(2mm) |
|
|
Oil Tank Power Volume & Thickness |
|
|
|
Blender Material & Thickness |
SUS316L(thickness : 6mm) |
|
|
Platform Material & Thickness |
304(thickness : 4mm) |
|
|
Safty Guardrail Material & Thickness |
304(thickness: 1.5mm round pipe) |
|
|
Speed of Scraping Plate Blender |
0-83r/min |
|
|
Speed of Homogenizer |
0-3040 r/min |
|
|
Temperature of Emulsifying Pot |
≤180 ℃ |
|
|
Blender Motor |
0.75KW |
1.1KW |
|
Homogenizer Power |
3KW |
4KW |
|
Water Tank Power |
0.37KW |
0.37KW |
|
Oil Tank Power |
0.37KW |
0.37KW |
|
Vacuum Pump Power |
0.75KW |
0.75KW |
|
Heating Pipe Power |
3KW |
6KW |
|
Vacuum of Emulsifying Pot |
-0.09Mpa |
|
|
Pressure of Jacket |
normal pressures |
|
|
Voltage |
50-60Hz 380V±10%-15% |
|
|
Grass Weight |
about 250KG |
about 300KG |
|
Overall Dimension |
1.24*0.65*1.35 m |
1.25*0.75*1.35M |
Company overview
We are leading manufacturer in China which specialized in Cosmetic machinery, Food machinery and Pharmacy machinery products supplying for over 15 years; good quality and professional service help us gain many good reputation all over the world;
we hope you can join us in the future.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Vacuum Emulsifying Mixer series consists of emulsifying boiler (pulsating cover, turning kettle or cylindrical type), water boiler, oil and water, vacuum system, heating temperature control system, cooling system, motor control system, etc.And so on.
It mainly refers to the material in a vacuum state, using a high shear emulsifier to quickly and evenly distribute one phase or multiple phases in another continuous phase.
High shear homogenizing emulsifying mixer It uses the strong Vacuum Emulsifying Blender kinetic energy brought by the machine to make the material in the narrow gap of the stator and rotor, and bear the hydraulic shear of hundreds of thousands of times per minute.
We have a number of Vacuum Emulsifying Mixer design patents. Emulsifying Mixer havs beautiful appearance, advanced and reasonable internal mixing design, mixing efficiency and no dead corner rack mixing and spiral belt mixing combination, improve the mixing efficiency.
The Vacuum Homogenizer Emulsifying Mixer is suitable for Cosmetic and chemical industry such as facial cleanser/Shower gel/body wash product making machine. China factory wholesale Cream Vacuum Emulsifier.
The Inline Homogenizer (Vacuum Emulsifier )is generally made of main emulsification blender, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, tilting system for the main Emulsifying Mixer, heating and cooling system, temperature control system, electrical control panel etc.
Our Vacuum homogenizer emulsifying mixer is suitable for Cosmetic and chemical industry such as facial cleanser/Shower gel/body wash/liquid detergent product making machine. It's China Factory Wholesale Cream Vacuum Emulsifier.
MZH Vacuum Emulsifying Mixer Series is composed of emulsification boiler (fluctuating cover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. etc..
MZH Vacuum Homogenizing & Emulsifying Machine is indispensable equipment to paste, honey. It is very useful experiment tool in cosmetic factory with complete function and high quality. Specification: 50L, 100L, 200L, 300L, 500L. Type: Hydraulic lifting Pneumatic lifting.
The Vacuum Emulsifier Mixer is a high-tech product researched and developed by our company. It is suitable for products of various viscosity such as face cream, , ointment, shampoo, etc. It is widely applied for different industry in such industries as food, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry etc.
This vacuum emulsifying machine is specially used for liquid mixing (such as cream, detergent, shampoo, washing powder, etc.). It can also be used to mix different kinds of liquids, as well as mixing liquids and solids in other industries. The mixer has the characteristics of mixing, dispersing, homogenizing and heating, and is the ideal equipment for liquid mixing.
In order to ensure the stability of the whole machine, vacuum emulsifying mixer of the whole machine adopts imported electrical appliances that meet international standards.
