Home Vacuum Emulsifying Mixer Vacuum emulsifier /Hair color cream mixer/inline homogenizer

New Products

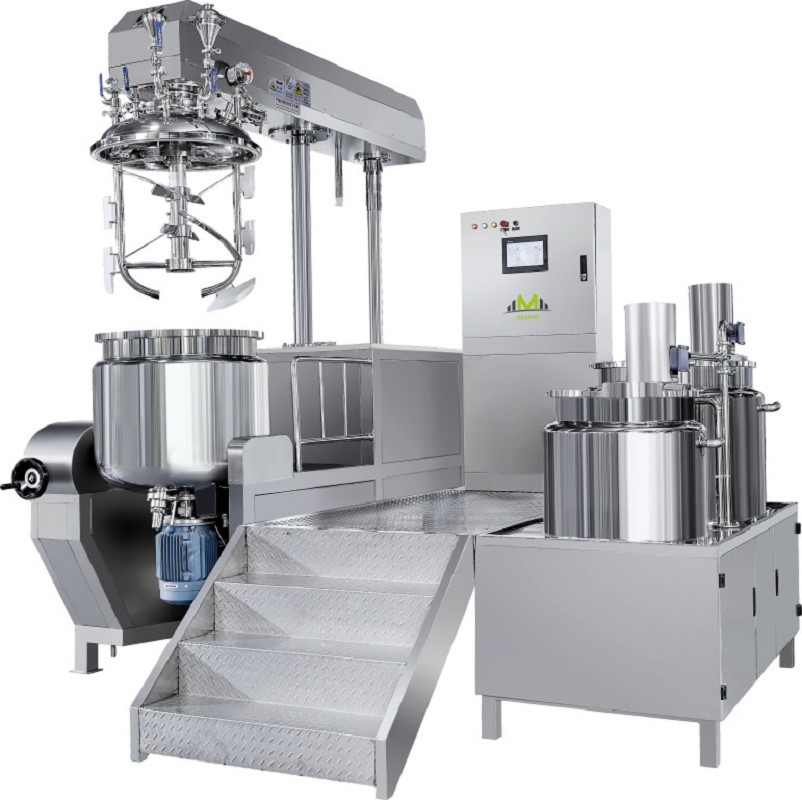

Vacuum emulsifier /Hair color cream mixer/inline homogenizer

The Inline Homogenizer (Vacuum Emulsifier )is generally made of main emulsification blender, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, tilting system for the main Emulsifying Mixer, heating and cooling system, temperature control system, electrical control panel etc.

  • Item NO.:

    MZH-V
  • Product Origin:

    China
  • Shipping Port:

    Haungpu,guangzhou
  • Lead Time:

    30 working days
Products Description

Vacuum emulsifier /Hair color cream mixer/inline homogenizer

Customized And OEM Service Available


Vacuum Emulsifier

Product descriptions:


The Vacuum Homogenizer Cream Mixer (Vacuum Emulsification Equipment )is generally made of main emulsification blender, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, tilting system for the main emulsifying mixer, heating and cooling system, temperature control system, electrical control panel etc.




 Feature:


1.high sanitary standard manufacturing

2.internal surface mirror polished

3.agitation group consisting of two slow agitators and one fast agitator

4.double speed slow agitators(stepless speed variation as optional)

5.double speed fast agitators(stepless speed variation as optional)

6.mechanical seal of agitation groups

7.lifting cover system

8.tilting vessel

9.body and agitators made of SS AISI 316L

10.internal pressurization for discharge and inertization

11.SS AISI 304jacket

12.cover for thermal insulation made of SS tank in tank13.vacuum group

14.heating station

15.sterilizing filter installed on the vacuum-breaking device

16.cleaning balls

17.embedded CIP group

18.product temperature check by means of Pt 100 probe,special sheath ,close to the side

19.buttons or PLC controlled process functions

20.electronic weighing system.



SPECIFICATIONS FOR MZH-100L Emulsifier Mixer


Engine

Top mixer

5.5Kw

0-65rpm

Bottom Homogenizer

11kw

3000rpm

Top Homogenizer

7.5kw

3000rpm


Main performance parameters

Steam heating

pressure

0.09mpa

Electric heating

36kw

18kw*2

Double jacket

water jacket

with insulation


Hydraulic system

Hydraulic system

0.75kw

lifting up and down

Vacuum pump

0.55kw

water ring pump

Material pump

3kw

screw pump
