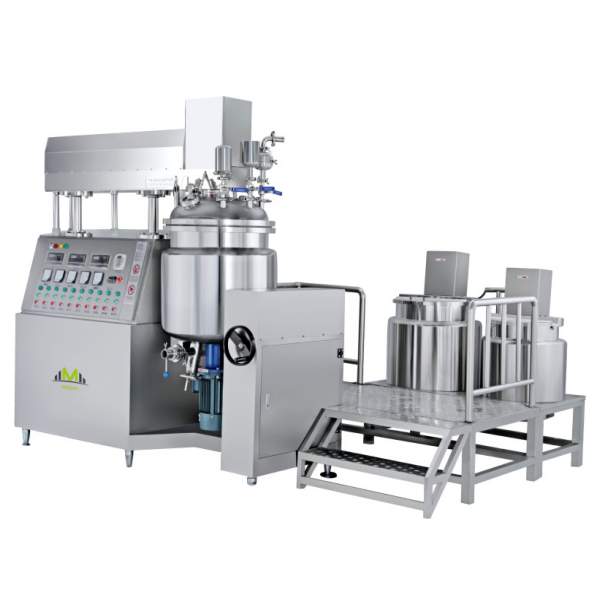

This vacuum emulsifying machine is specially used for liquid mixing (such as cream, detergent, shampoo, washing powder, etc.). It can also be used to mix different kinds of liquids, as well as mixing liquids and solids in other industries. The mixer has the characteristics of mixing, dispersing, homogenizing and heating, and is the ideal equipment for liquid mixing.
Item NO.:
MZH-VPayment:
L/C T/TProduct Origin:
GUANGZHOU,CHINAColor:
Stainless steelShipping Port:
HUANGPU,GUANGZHOULead Time:
40 WORKING DAYSVacuum homogenizer cream mixer vacuum emulsifying mixer suppliers
Customized and OEM available
Brief description
There are many varieties of vacuum emulsifiers produced by our company. The homogenization system includes an upper homogenizer, a bottom homogenizer, and internal and external homogenizers. The mixing system includes one-way mixing, two-way mixing and spiral ribbon mixing. The lifting system includes single-cylinder lifting, which can be customized according to customer requirements.
Technological parameter
|
Model |
Main pot |
Water pot |
Oil pot |
Main pot power |
Hydraulic System (Kw) |
Vacuum pump power(Kw) |
|
|
Volume(L) |
Wall scraping (Kw) |
homogenizer (Kw) |
|||||
|
SME-5 |
5L |
|
|
0.18 |
1.1 |
0.75 |
0.55 |
|
SME -10L |
10L |
8 |
5 |
0.18 |
1.1 |
0.75 |
0.75 |
|
SME -20L |
20L |
18 |
10 |
0.37 |
1.5 |
0.75 |
0.75 |
|
SME -50L |
50L |
40 |
25 |
0.75 |
4-7.5 |
1.5 |
1.5 |
|
SME -100L |
100L |
80 |
50 |
1.5 |
4-7.5 |
1.5 |
1.5 |
|
SME -200L |
200L |
170 |
100 |
2.2 |
7.5-11 |
1.5 |
2.2 |
|
SME -300L |
300L |
250 |
150 |
2.2 |
7.5-11 |
1.5 |
2.2 |
|
SME -500L |
500L |
420 |
250 |
4 |
11 |
1.5 |
2.2 |
|
SME -1000L |
1000L |
820 |
500 |
5.5 |
5 |
2.2 |
3 |
Feature:
1) Three mixing pot: oil and water mixing pot; main mixing pot.
2) Main pot --Upper scraping Mixer 0-63 rpm scraper mixer: on the lid
3) Main pot--Bottom Homogenizing Mixer: 0-3000rpm variable: at the bottom of the pot
4) Main pot is in vacuum state during the working to avoid bubbles
5) Water&Oil pot are working under atmospheric pressure, turbine stir
6) Lid of the main pot is lifted by PLC controlled hydraulic cylinder
7) Material feeding of main pot: vacuum suction
8) With electric control case, PLC controlled
9) SIEMENS motors, all components are international brands
10) Generally the parts have contact with material adopt SUS316L, other parts SUS 304.
Prev:
Liquid soap mixer machine vacuum emulsifying mixer factoryNext:
Hand sanitizer mixing machine complete machine production and fillingIf you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
MZH Vacuum Emulsifying Mixer Series is composed of emulsification boiler (fluctuating cover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. etc.
Vacuum Emulsifying Mixer series consists of emulsifying boiler (pulsating cover, turning kettle or cylindrical type), water boiler, oil and water, vacuum system, heating temperature control system, cooling system, motor control system, etc.And so on.
It mainly refers to the material in a vacuum state, using a high shear emulsifier to quickly and evenly distribute one phase or multiple phases in another continuous phase.
High shear homogenizing emulsifying mixer It uses the strong Vacuum Emulsifying Blender kinetic energy brought by the machine to make the material in the narrow gap of the stator and rotor, and bear the hydraulic shear of hundreds of thousands of times per minute.
We have a number of Vacuum Emulsifying Mixer design patents. Emulsifying Mixer havs beautiful appearance, advanced and reasonable internal mixing design, mixing efficiency and no dead corner rack mixing and spiral belt mixing combination, improve the mixing efficiency.
The Vacuum Homogenizer Emulsifying Mixer is suitable for Cosmetic and chemical industry such as facial cleanser/Shower gel/body wash product making machine. China factory wholesale Cream Vacuum Emulsifier.
The Inline Homogenizer (Vacuum Emulsifier )is generally made of main emulsification blender, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, tilting system for the main Emulsifying Mixer, heating and cooling system, temperature control system, electrical control panel etc.
Our Vacuum homogenizer emulsifying mixer is suitable for Cosmetic and chemical industry such as facial cleanser/Shower gel/body wash/liquid detergent product making machine. It's China Factory Wholesale Cream Vacuum Emulsifier.
MZH Vacuum Emulsifying Mixer Series is composed of emulsification boiler (fluctuating cover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. etc..
MZH Vacuum Homogenizing & Emulsifying Machine is indispensable equipment to paste, honey. It is very useful experiment tool in cosmetic factory with complete function and high quality. Specification: 50L, 100L, 200L, 300L, 500L. Type: Hydraulic lifting Pneumatic lifting.
The Vacuum Emulsifier Mixer is a high-tech product researched and developed by our company. It is suitable for products of various viscosity such as face cream, , ointment, shampoo, etc. It is widely applied for different industry in such industries as food, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry etc.
In order to ensure the stability of the whole machine, vacuum emulsifying mixer of the whole machine adopts imported electrical appliances that meet international standards.
