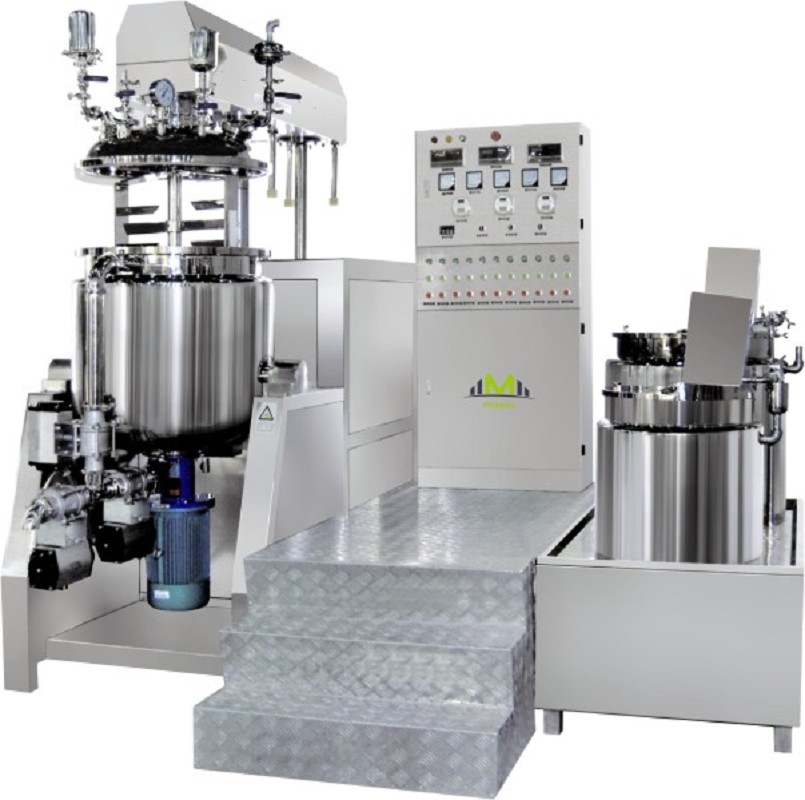

The Vacuum Homogenizing Emulsifying Machine is a complete set of system with multi-function of mixing, dispersing, homogenizing, emulsifying and powder absorbing. It is equipped with electric control system and can also be used with peripheral oil and water tanks, vacuum, heating / cooling system, etc. It is a special equipment for producing pharmaceutical ointment, high-grade cream, emulsion and so on.
Item NO.:
MZH-MPayment:
T/T D/A D/P L/CProduct Origin:
Guangzhou ChinaShipping Port:
HuangpuLead Time:
35 Working DaysAutomatic Soap & Shampoo Making Vacuum Homogenizing Emulsifying Machine
Customized And OEM Service Available
Working principle
The material is stirred in the center of the upper part of the emulsifier, and the Teflon scraper always caters to the shape of the mixing pot. It cleans up the sticky material on the wall, so that the scraped material continuously produces a new interface. Then it is cut, compressed and folded by the blades and rotary blades, so that it is stirred and mixed, and flows down to the homogenizer below the pot. The material then flows through the high-speed rotating cutting wheel and fixed cutting wheel In the process of strong shearing, impact and turbulent flow between the sleeves, the material is cut in the shear seam and rapidly broken into 200nm-2um particles. Due to the vacuum state in the emulsion tank, the bubbles generated in the mixing process of the material are timely removed. By means of vacuumizing, bubbles are no longer mixed into the products during the mixing process, so as to ensure that high-quality products with rich luster, fine and good ductility can be produced.
Technical parameters
|
Model |
Volume(L) |
Emulsifying mixer pot |
Homogenizer |
||||
|
Mixer Pot |
Water Pot |
Oil Pot |
Power(KW) |
Speed(RPM) |
Power(KW) |
Speed(RPM) |
|
|
MZH-5 |
6 |
4 |
4 |
0.55 |
0-86 |
1.1 |
0-3500 |
|
MZH-10 |
10 |
8 |
8 |
0.55 |
0-86 |
1.1 |
0-3500 |
|
MZH-30 |
30 |
25 |
17.5 |
0.75 |
0-86 |
1.5 |
0-2900 |
|
MZH-50 |
50 |
38 |
25 |
0.75 |
0-86 |
1.5 |
0-2900 |
|
MZH-100 |
100 |
60 |
45 |
1.5 |
0-86 |
3 |
0-2900 |
|
MZH-150 |
150 |
100 |
75 |
1.5 |
0-86 |
4 |
0-2900 |
|
MZH-200 |
200 |
120 |
100 |
2.2 |
0-65 |
4 |
0-2900 |
|
MZH-250 |
250 |
160 |
130 |
2.2 |
0-65 |
4 |
0-2900 |
|
MZH-350 |
350 |
250 |
200 |
2.2 |
0-65 |
4 |
0-2900 |
|
MZH-500 |
500 | 450 | 400 | 3 | 0-60 | 4.5 | 0-2880 |
Prev:
Automatic Cosmetic Beauty Cream Vacuum Emulsifying MixerNext:
High shear mixer homogenizing mixer vacuum emulsifying mixer machineIf you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
MZH Vacuum Emulsifying Mixer Series is composed of emulsification boiler (fluctuating cover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. etc.
Vacuum Emulsifying Mixer series consists of emulsifying boiler (pulsating cover, turning kettle or cylindrical type), water boiler, oil and water, vacuum system, heating temperature control system, cooling system, motor control system, etc.And so on.
It mainly refers to the material in a vacuum state, using a high shear emulsifier to quickly and evenly distribute one phase or multiple phases in another continuous phase.
High shear homogenizing emulsifying mixer It uses the strong Vacuum Emulsifying Blender kinetic energy brought by the machine to make the material in the narrow gap of the stator and rotor, and bear the hydraulic shear of hundreds of thousands of times per minute.
We have a number of Vacuum Emulsifying Mixer design patents. Emulsifying Mixer havs beautiful appearance, advanced and reasonable internal mixing design, mixing efficiency and no dead corner rack mixing and spiral belt mixing combination, improve the mixing efficiency.
The Vacuum Homogenizer Emulsifying Mixer is suitable for Cosmetic and chemical industry such as facial cleanser/Shower gel/body wash product making machine. China factory wholesale Cream Vacuum Emulsifier.
The Inline Homogenizer (Vacuum Emulsifier )is generally made of main emulsification blender, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, tilting system for the main Emulsifying Mixer, heating and cooling system, temperature control system, electrical control panel etc.
Our Vacuum homogenizer emulsifying mixer is suitable for Cosmetic and chemical industry such as facial cleanser/Shower gel/body wash/liquid detergent product making machine. It's China Factory Wholesale Cream Vacuum Emulsifier.
MZH Vacuum Emulsifying Mixer Series is composed of emulsification boiler (fluctuating cover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. etc..
MZH Vacuum Homogenizing & Emulsifying Machine is indispensable equipment to paste, honey. It is very useful experiment tool in cosmetic factory with complete function and high quality. Specification: 50L, 100L, 200L, 300L, 500L. Type: Hydraulic lifting Pneumatic lifting.
The Vacuum Emulsifier Mixer is a high-tech product researched and developed by our company. It is suitable for products of various viscosity such as face cream, , ointment, shampoo, etc. It is widely applied for different industry in such industries as food, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry etc.
This vacuum emulsifying machine is specially used for liquid mixing (such as cream, detergent, shampoo, washing powder, etc.). It can also be used to mix different kinds of liquids, as well as mixing liquids and solids in other industries. The mixer has the characteristics of mixing, dispersing, homogenizing and heating, and is the ideal equipment for liquid mixing.
