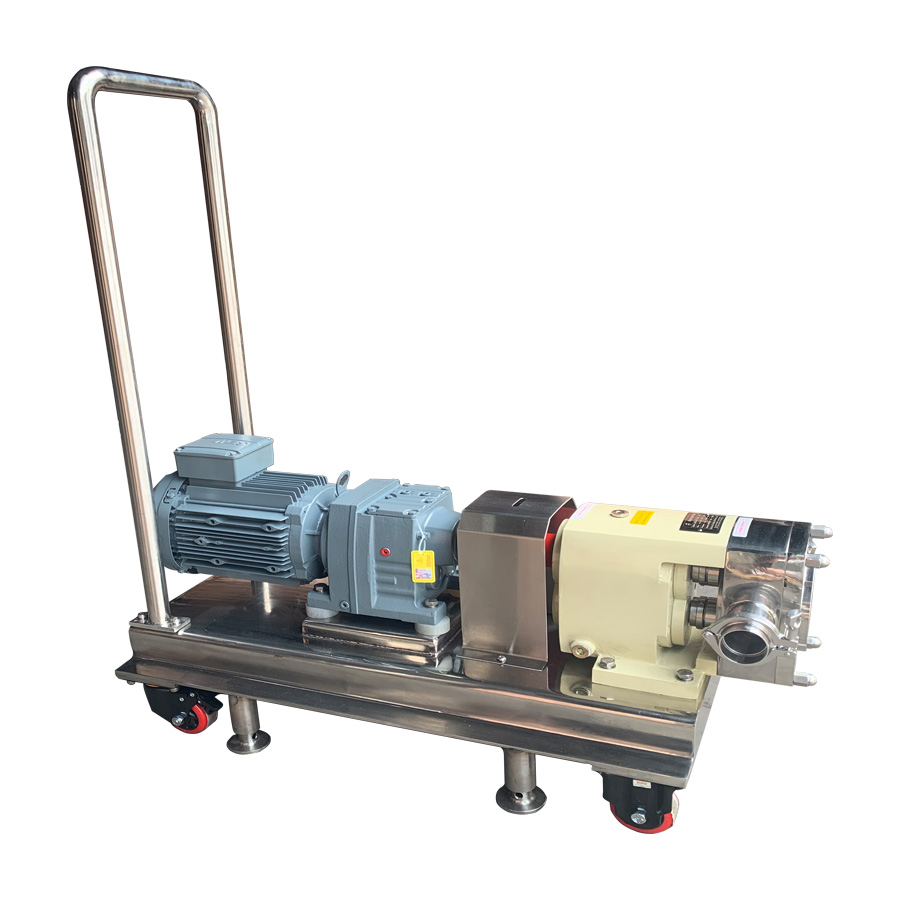

Rotor Pump is a positive displacement pump, its power source is to rely on its own two synchronous reverse rotation of the two fan blades, in the process of rotation in the import place to produce a strong suction, so it can inhale the media needed by customers and transport, rotor pump constantly running, the media will be continuously transported to the place of need.
Item NO.:
MZH-TPayment:
T/T D/A D/P L/CProduct Origin:
Guangzhou ChinaShipping Port:
HuangpuLead Time:
35 Working DaysWidely used stainless steel high speed rotor pump
Customized And OEM Service Available
Features
1. The impeller of the rotor pump is separated from the transmission gear, and a certain gap is ensured between the spare parts in the pump cavity, so that the rotor pump has no wear, low noise, good reliability, long service life, energy saving and consumption reduction.
2. The rotor pump has compact structure, convenient maintenance, almost no wearing parts and low operation cost.
3. It can transport vapor, liquid, solid and other three-phase mixed materials. The viscosity of the medium that can be transported can be as high as 1000000cp and the slurry with solid content up to 55%.
4. External dynamic and static ring mechanical seal is adopted, which can be washed directly with water, resistant to high pressure, not easy to wear and leakage.
5. The streamline structure of the rotor and the rotor chamber have no dead point and non-metallic parts, so as to avoid pollution to the transported materials.
Technical parameters
| Working Principle | Centrifugal |
| Main applications | Food fluid, wine, water, etc |
| Driver | Electric motor |
| Max.permissible fluid temperature | 100°C(212°F) |
| Installation position | Horizontal |
| Casing/Inner parts material | Stainless Steel/Stainless steel |
| Maximum drive rating | 37KW(50HP) |
| Maximum caliber | 159mm(6 1/4inch) |
| Maximum discharge-side pressure | 0.6MPa(6bar) |
| Maximum head | 60m(196.8ft) |
| Flow rate range | 3-200m3/h(13.2-880US.GPM) |
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
