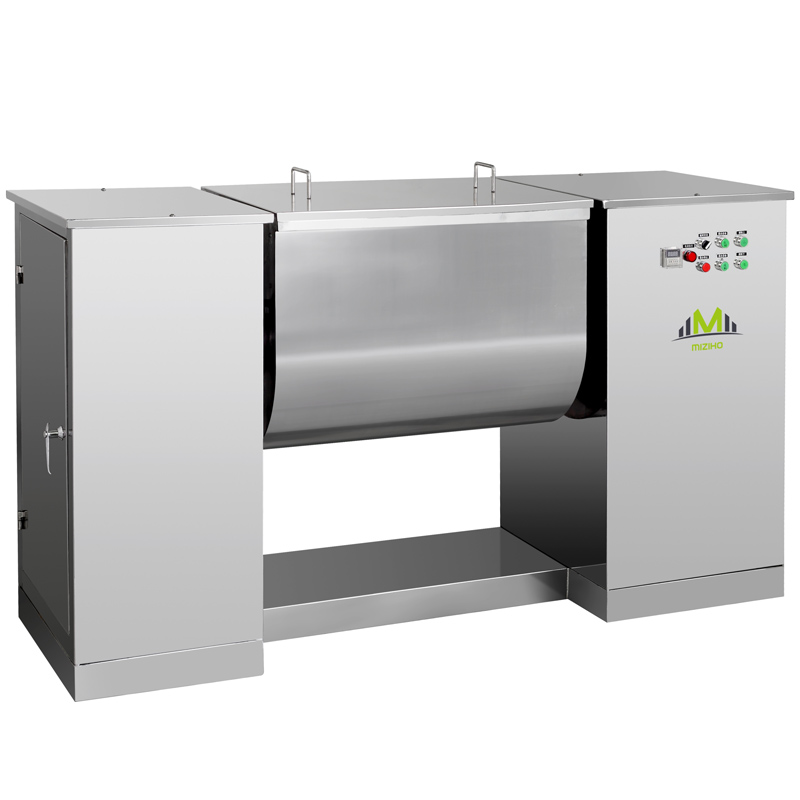

Horizontal powder mixer machine for cosmetics pharmaceuticals food

This Horizontal Powder Mixer Machine for cosmetics pharmaceuticals food is use stainless steel horizontal trough mixer, suitable for mixing powder or paste materials in pharmaceutical, chemical, food and other industries.

  • Item NO.:

    MZH-M
  • Payment:

    T/T D/P D/A L/C MoneyGram
  • Product Origin:

    Guangzhou China
  • Color:

    Stainless steel 304/316
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 working days
Products Description

Horizontal powder mixer machine for cosmetics pharmaceuticals food

Customized And OEM Service Available

Horizontal Powder Mixer Machine

Details introduced

1. The "S" type single impeller of Pharmaceutical Powder Mixer Machine reverses the material reciprocally through mechanical rotation to obtain even mixing.

2. The Horizontal Industrial Powder Mixer stirring time can be set with electric control.When the specified time is reached, the machine will stop, ensuring the quality of each stirring.

Technical parameters

Model

MZH-M1000l

Blades Type

s

Volume(L)

1000

Rotate Speed(r/min)

<105°

Reversed Mix Angle

15

Mixing Motor (kw)

15

Batch Turning(kw)

SUS304

Material

2500×1300×860

Weight (kg)

1500

Model

Volume

(M3)

Loading weight

(Kg/time)

Overall dimension

(L*W*H)(mm)

Mixing

time

(min)

Speed

of stirring

(r/min)

Power

of motor

(kw)

Power of

feeding motor

(kw)

150

0.15

30

1360*540*1100

6-15

24

3

0.55

300

0.3

210

1900*750*1300

6-15

24

4

1.5

1000

1.0

780

2500*1300*860

6-15

19

7.5

3


Parts List


Name

Model

Origin

Qty

Remark

Principal axis

Random worthy

MZH

1

Stainless Steel304

Blade

Random worthy

MZH

1

Stainless Steel304

Mixing blade

Random worthy

MZH

1

Stainless Steel304

Bearing cover

Random worthy

MZH

2

Stainless Steel304

Bearing

6210

Japan

4

complete shut-off

Belt roller

A

MZH

4

Cast iron

Belt

A

Wuxi

5

Rubber

Main motor

5.5kw

Jiangyin

1

Horizontal

Mixing motor

1.1kw

Jiangyin

1

Horizontal

Reducer

135#

Zhejiang

1


Oil tank

70*50*12

German

2

Close

Homemade seal

70*50*10

MZH

2

PTFE
