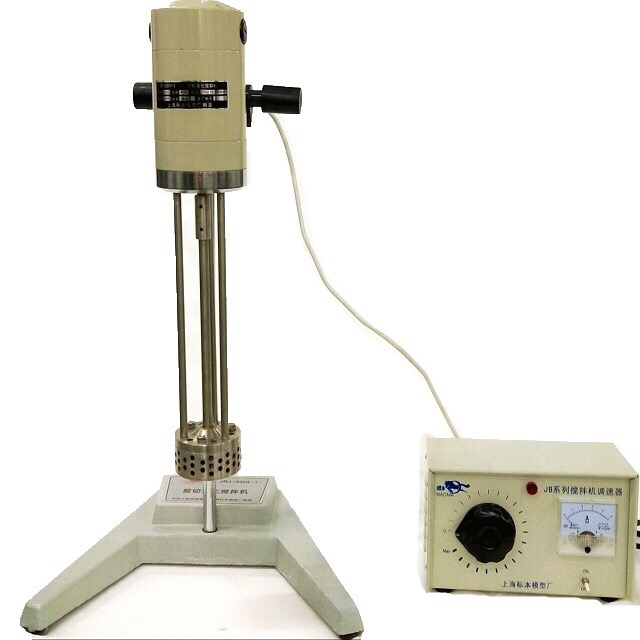

Lab high shear homogenizing emulsification mixer

Our Lab Homogenizer design is novel and advanced, with high output power, high running speed and simple experiment operation. The Emulsification Mixer is high shear homogenzing.

  • Item NO.:

    MZH-LAB
  • Payment:

    L/C,D/A,D/P,T/T,Western Union,MoneyGram
  • Product Origin:

    Guangdong, China
  • Shipping Port:

    haungpu,guangzhou
  • Lead Time:

    15 Working days
Products Description

 Lab high shear homogenizing emulsification mixer

Customized And OEM Service Available

lab homogenizer


Product Brief:

MZH-M type High shear emulsifying mixer, applicable to the biological, physical and chemical, cosmetics, health products and food, and other areas of the experiment, is crushing the experiment material shearing emulsification experiment equipment in liquid medium.

Features:

1.High Shear Lab Mixer has a special steep slope speed control function, enabling the device to choose the test speed at any time within the speed range.

2. The unique structure of shear emulsification ensures that the rotor of the working head rotates at a high speed driven by the motor with high linear speed, resulting in strong fluid shear stress and severe mechanical effect of frequency, which causes the mixing of experimental materials in the experiment to strongly absorb the container at the bottom of the rotor area, and through the centrifugal force from the stat-or hole collisions.

3. The stat-or can be used for clearance flow to prevent a large number of medium rotation.

4. And in a very small space, the performance is very high, and the efficiency is about a thousand times higher than ordinary agitation.

5. Coordinate precision of the rotor and stat-or shear each other under the action of centrifugal force, the experimental materials of up to tens of thousands of times per minute under cut, tear, bump and mixed, so as to achieve the effect of shearing emulsification.

6. The working head stat-or configuration of different specifications is designed to meet different experimental needs.

7. It covers a wide range of applications, including crushing, emulsification, homogenization, polymerization, suspension, dissolution and stirring.

8. Its distinctive features and functions, as well as factories, medical units, biological research, cosmetics, food processing, colleges and universities and other scientific research, product development, quality control and production process of application of the ideal equipment.

Basic Specification:

Power

AC 200V 50Hz

Input Power

5l0W

Output Power

300 W

Head Diameter

 ø70mm

Max. Loading Capacity

5L

Speed Range

200~11000 r/min

Work Head Stat-or Configuration

5 mm2  20mm2  50mm2

Volume Range

40 L

Size of Main Frame

280×360×750mm

Application for

liquid and suspended solid
