Automatic upper plane and around of bottle labeling machine

This automatic upper plane and around of bottle labeling machine applicable label: self-adhesive label, self-adhesive film, electronic supervision code, bar code (also applicable to two different labels label at the same time).

  • Item NO.:

    MZH-L
  • Payment:

    T/T D/P D/A L/C MoneyGram
  • Product Origin:

    Guangzhou China
  • Color:

    Stainless steel 304/316
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 working days
Products Description

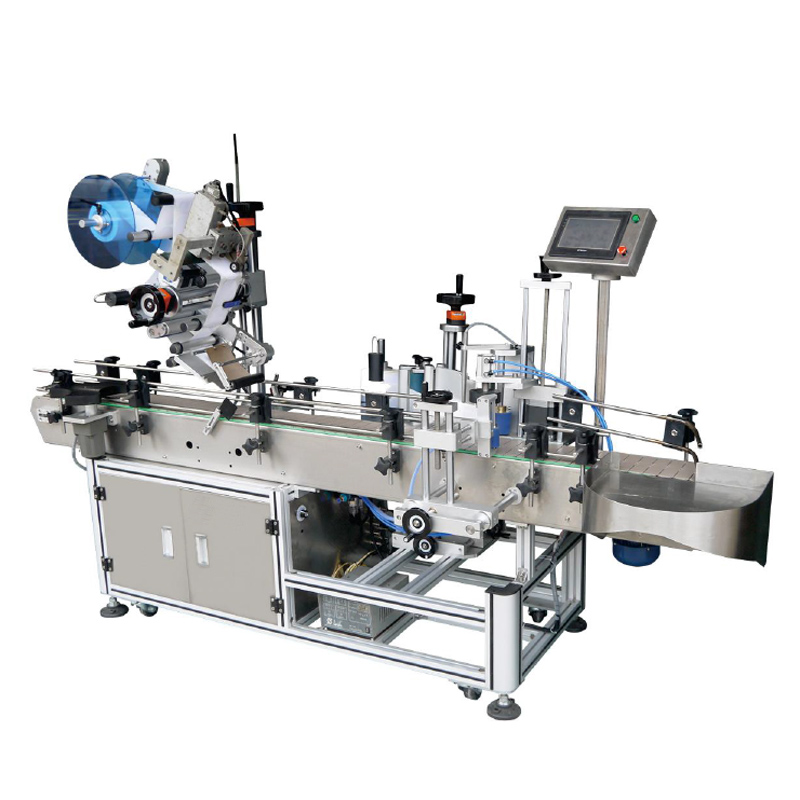

Automatic upper plane and around of bottle labeling machine

Customized And OEM Service Available

Bottle Labeling Machine


Scope of application

This automatic upper plane and around of bottle labeling machine applicable products: products that need to be attached to labels in plane and circumference.

This automatic bottle labeling machine applied industries: food, daily chemical, wine, medicine, toys, cosmetics, electronics, hardware, plastic and other industries.

Application examples: food canned labelling, mosquito coil box labeling, red wine bottle double label labeling, etc.


Functional characteristics

1. Adjustment is simple and easy to understand, configuration before and after, left and right, up and down direction, plane inclination, vertical inclination adjustment seat, different bottle type switching no dead angle;

2. Automatically dividing bottles, adopting star-shaped wheel dividing bottle mechanism, effectively eliminating the bottle dividing obstacle caused by the error of the bottle itself;

3. Humanized touch screen, full-featured, with rich online help functions, can preset labeling parameters, switch freely, warning prompts, labeling quantity management;

4. intelligent control, automatic photoelectric tracking, no matter no labeling, fault indication and other functions.

5. High stability, the use of Panasonic PLC + dimension control touch screen + Panasonic needle-shaped eye (set time without production, equipment automatically to save power standby state), production set prompt function, parameter settings protection function (parameter settings divided by authority management), convenient production management.


Technical parameters (the following are technical parameters of standard type, other special requirements and functions, which can be customized).

Model

MZH-L

Labeling speed

30~60pcs/min

Applicable label length

20~220mm

Conveyor speed

5~18mm/min

Applicable label width

10~150mm

weight

220kg

Applicable product diameter

Ø50~Ø90mm

Voltage

220V 50Hz

Applicable marking outer diameter

Ø280mm

power

1.5kw

Applicable to marking inner diameter of volume

Ø76mm

Air pressure

0.4~0.6Mpa

Labeling accuracy

±1mm

Conveyor direction

From left to right

Label out speed

5~25m/min

equipment size

2100*1100*1500mm
