Semi automatic special-shaped bottle labeling machine

This Flat Bottle Labeling Machine is widely used in food, medicine, cosmetics, daily chemicals, electronics and other industries. Used for semi automatic labeling machine of plane and part of arc surface in semi-finished products or finished products

  • Item NO.:

    MZH-L
  • Payment:

    T/T D/P D/A L/C MoneyGram
  • Product Origin:

    Guangzhou China
  • Color:

    Stainless steel 304/316
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 working days
Products Description

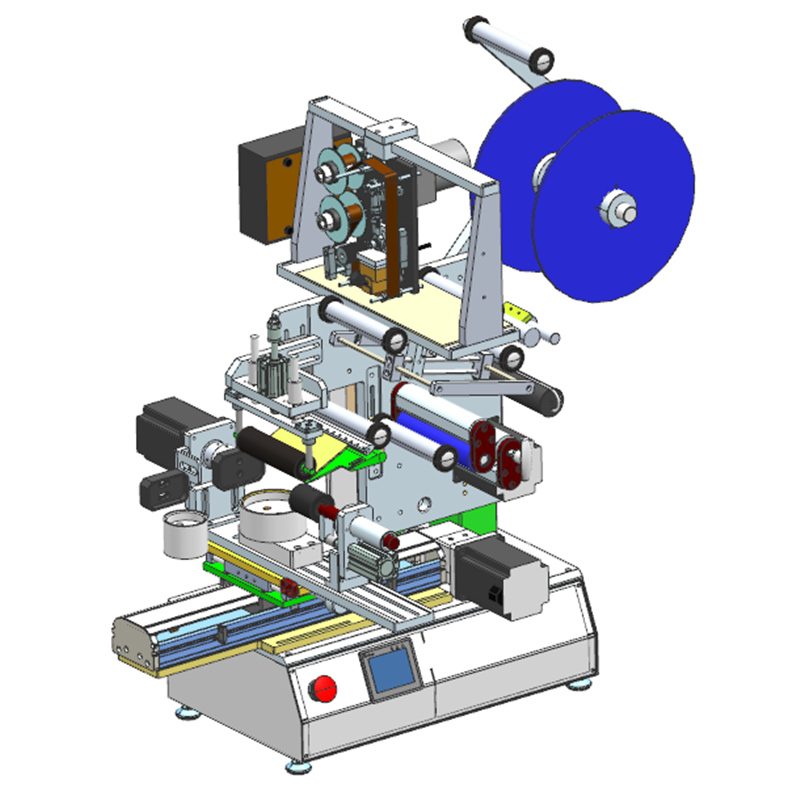

Semi automatic special-shaped bottle labeling machine

Customized And OEM Service Available

Flat Bottle Labeling Machine


Working principle

1.Transmission system: This Bottle Labeling Machine motor drives the traction mechanism and the material receiving mechanism through the synchronous belt to provide power for label peeling, so as to realize label peeling and recycling base paper.

2.Control system: this Semi Automatic Labeling Machine adopts the combination of electricity and gas control, electric eye (sensor) and foot switch will get the signal to the PLC centralized processor in accordance with the set program for processing, so as to achieve stripping, absorbing, overmarking and counting functions



Technical parameters (the following are technical parameters of standard type, other special requirements and functions, which can be customized).

Model


Label out speed

5~15 m/min

Applicable label length

20~130mm

Labeling speed

15~30 pcs/min

Applicable label width

20~150mm

weight

65 kg

Applicableproductlength

20~200mm

Voltage

220V 50Hz

Applicableproduct width

20~150mm

power

800 w

Applicable product height

0.2~120mm

Air pressure

0.4~0.6Mpa

Applicable marking outer diameter of volume

Ø280mm

Labeling method

Rolling label

Applicable to marking inner diameter of volume

Ø76mm

equipment size

1040*450*900mm

Labeling accuracy

±0.5mm
