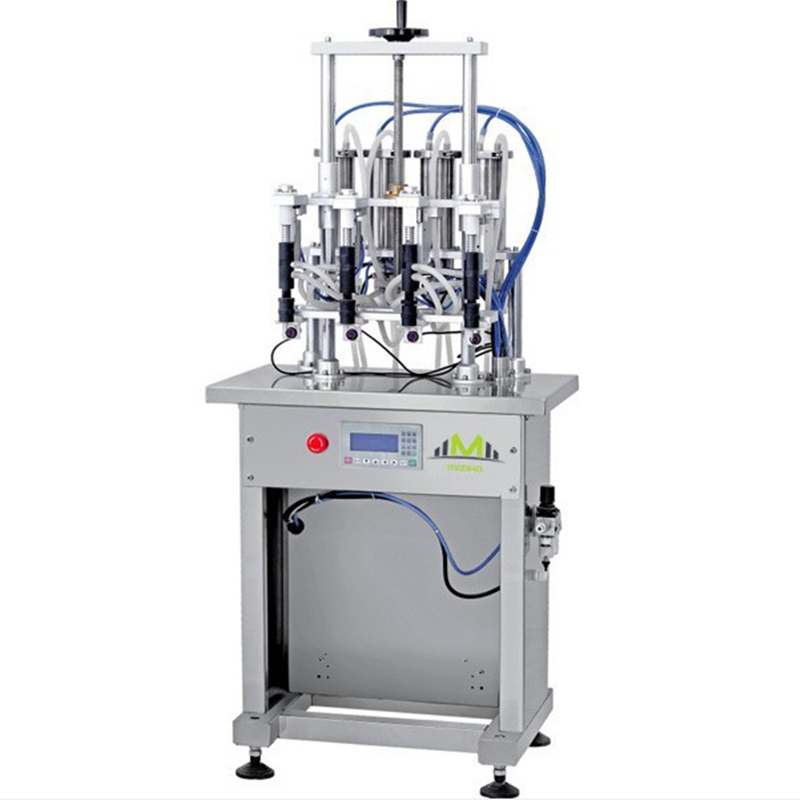

Semi automatic perfume vacuum filling machine

This Semi automatic perfume Vacuum Filling Machine adopts imported parts, piston and cylinder are made of stainless steel and ptfe.Perfume Making Equipment is High quality imported parts, perfect mechanical design.

  • Item NO.:

    MZH-F 4 Nozzles
  • Payment:

    T/T D/P D/A L/C MoneyGram
  • Product Origin:

    Guangzhou China
  • Color:

    Stainless steel 304/316
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 working days
Products Description

Semi automatic perfume vacuum filling machine


Customized And OEM Service Available

Perfume Filling Machine



Details introduced


1. Perfume Making Equipment can be widely used in liquid, chemical, medicine, cosmetics, food and other industries.

2. Adopt new vertical design, lightweight and easy to operate.
3. Leakproof filling system: during filling, the cylinder moves up and down and the head moves.When the head is pressed down by the cylinder, the valve will open and start filling materials.When it rises from the cylinder, the valve will close and stop filling to avoid leaks and wire-drawing.

4. Manual and automatic switching function: when Perfume Filling Machine is in the "automatic" state, the machine will fill continuously at the set speed: when the machine is in the "manual" state, the operator steps on the pedal to fill.If the pedal is pressed continuously, it will become a continuous filling state.The cylinder and tee are connected by sleeve, which is easy to disassemble.It doesn't require any special tools, so it's easy to clean.


Technical parameters

Model

MZH-F 4 Nozzles

Air Pressure

>0.7MPa

Pressure of Reducing Valve

0.55-0.65MPa

Air Consumption

0.3 m3/min

Capacity

20-40 time/min

Filling Range

10-1500ml

Precision

±1.5g
