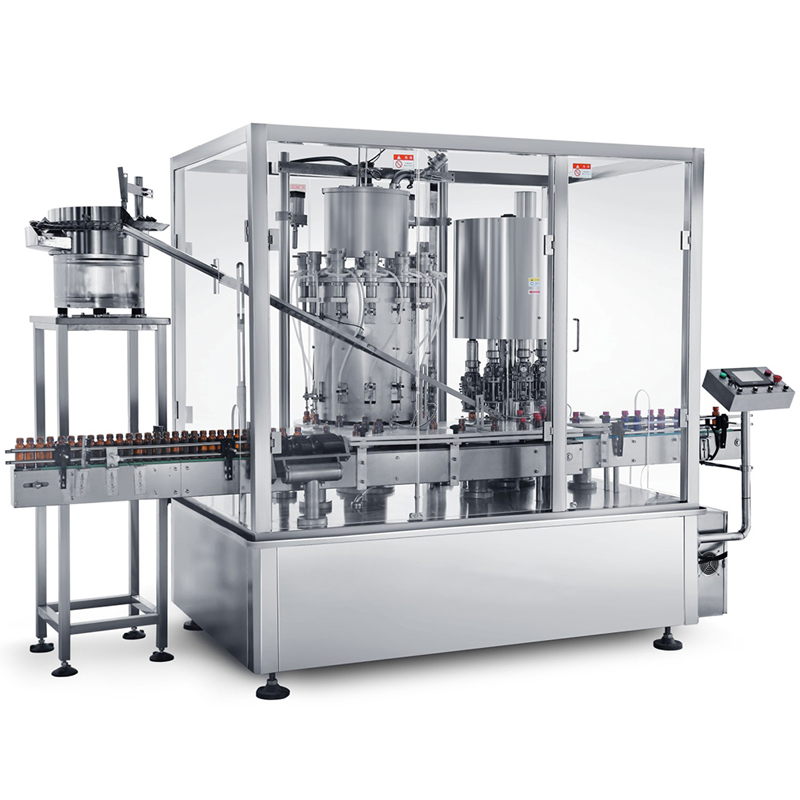

Bottle filling capping machine integrated machine

This series of filling, rolling and capping all-in-one machine is mainly applicable to the filling and sealing of liquids with different viscosities such as oral liquid, syrup, liquor, health products and maching agents in pharmaceutical, food, health products, daily chemical and agrochemical industries.

Item NO.:
MZH-F
Payment:
T/T L/C D/A D/P
Product Origin:
Guangzhou China
Shipping Port:
Huangpu
Lead Time:
35 Working Days

Products Description

Bottle filling capping machine integrated machine

Customized And OEM Service Available

Filling Capping Machine

Main features

1. The filling rotary (rolling) cap is two in one, covering a small area. All of them adopt the form of rotary continuous bottle walking, which is applicable to both large and small bottles and has high production capacity;

2. The filling and capping (rolling) adopt circular rotation mechanism, which has stable and reliable operation and high efficiency; The structure is easy to maintain and the design is smart;

3. The plunger metering pump is used for filling, which is suitable for all kinds of viscous liquids with high precision; The structure of the pump adopts quick connection disassembly mechanism, which is convenient for cleaning and disinfection. The filling principle can also adopt peristaltic pump, negative pressure type, weighing type, self flow type, reflux defoaming, etc. each set of pump is driven by a set of servo motor, and the filling volume is adjusted by man-machine interface. It is easy to operate and adjust quickly. It can also drive multiple sets of pumps with one set of servo motor, and each set of pump can realize fine adjustment

Technical parameter

Model	MZH-8/6	MZH-12/8	MZH-18/12	MZH-24/16	MZH-36/18	MZH-48/20
throughput	100-120 bottles / min	150-180 bottles / min	200-250 bottles / min	300-350 bottles / min	400-500 bottles / min	500-600 bottles / min
Number of filling heads	8 heads	12 heads	18 heads	24 heads	36 heads	48 heads
Number of screw heads	6 heads	8 heads	12 heads	16 heads	18 heads	20 heads
Filling range	Commonly used 30 / 50 / 100ml glass bottles, other 20-1000ml glass bottles can be customized
Filling Precision	≤±0.5-1%
Qualification rate of screw cap	≥99.8%
Power Supply	220/380V 50/60Hz
Power consumption	≤2.2kw	≤2.2kw	≤2.2kw	≤3.5kw	≤3.5kw	≤3.5kw
compressed air	0.4-0.6Mpa
weight	1000kg	1200kg	1800kg	2000kg	2500kg	3000kg
