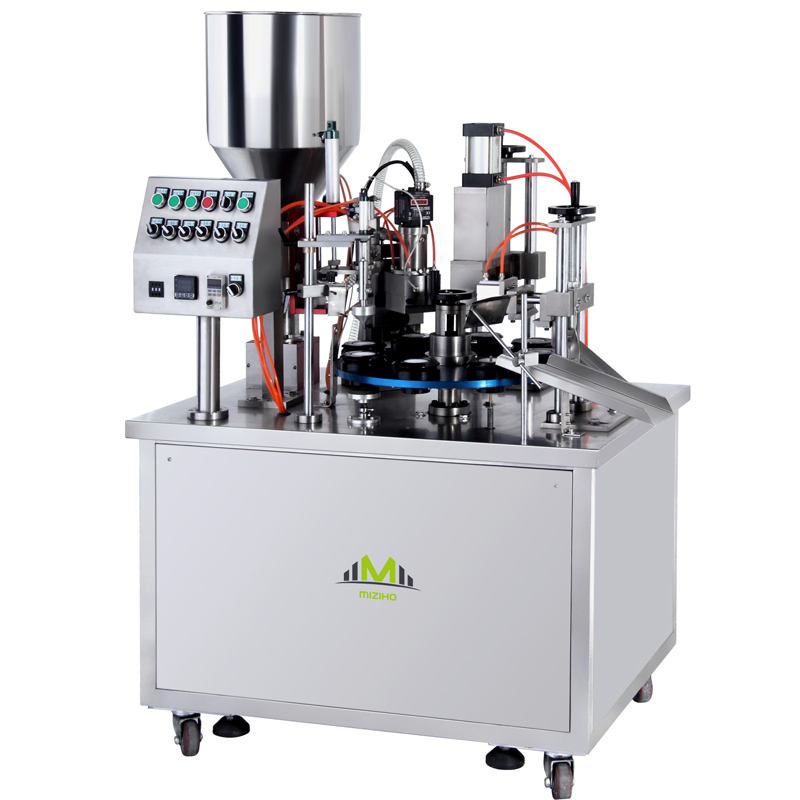

Semi automatic plastic inner heating tube filling and sealing machine

1. This semi automatic plastic inner heating Tube Filling And Sealing Machine can be used to fill paste (paste) and liquid materials into the plastic tube, then seal, print the date or number, and cut off the excess part.

2.This Plastic Tube Filling And Sealing Machine is widely used in cosmetics, daily chemical, medicine, food and other industries.

  • Item NO.:

    MZH-TFS
  • Payment:

    T/T D/P D/A L/C MoneyGram
  • Product Origin:

    Guangzhou China
  • Color:

    Stainless steel 304/316
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 working days
Products Description

Semi automatic plastic inner heating tube filling and sealing machine


Customized And OEM Service Available

Semi Automatic Tube Filling And Sealing Machine

Details introduced

1. This Semi automatic plastic inner heating Tube Filling And Sealing Machine is adopt efficient heater and stable flowmeter imported from Germany.They provide a reliable hot air heating system that provides a tight seal and high efficiency.

2. The Plastic Tube Filling And Sealing Machine filling heads of different specifications are suitable for materials of different thicknesses.

3.PLC control, accurate positioning.

4. The machine adopts mechanical structure, smooth operation, fast speed, good effect, low noise, simple structure, easy operation and maintenance, low failure rate.




Technical parameters

Model

MZH-TFS

Power supply

380(220)V/50Hz

Air supply

0.6-0.8Mpa

Air consumption

< 0.6 m3/min

Filling Volume

10-50ml

Volume precision

<±5%

Productivity

25-30pcs/min

Tube Diameter

Ø16-50mm

Dimension

1100*790*1500mm

Weight

260kg
