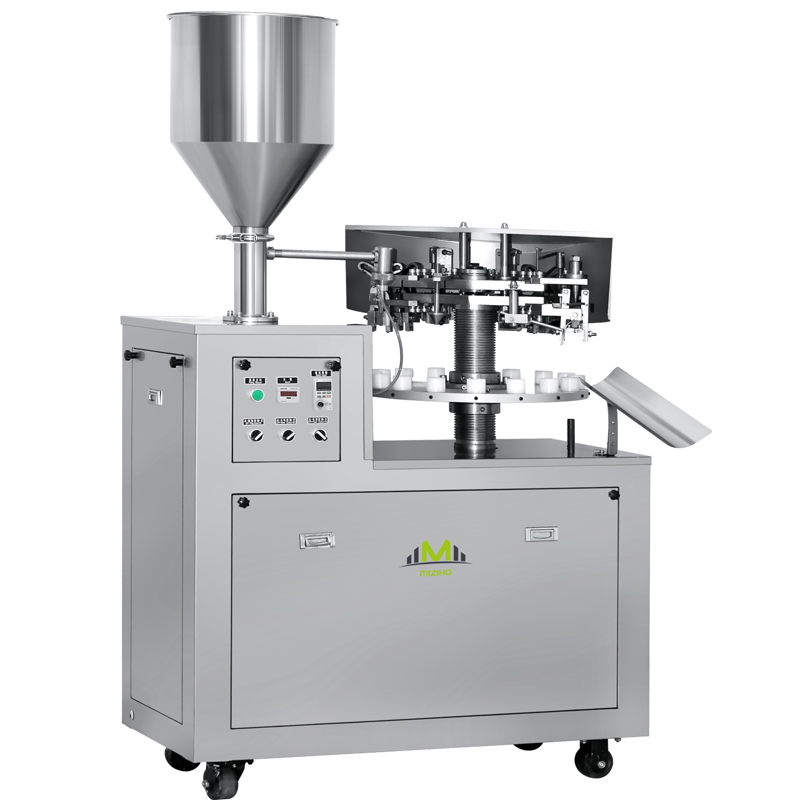

Semi automatic medical ointment aluminum tube filling and sealing machine

This semi automatic medical ointment Aluminum Tube Filling And Sealing Machine is the main product developed by our company. This machine is mainly used for filling and sealing metal tubes.

Suitable for medicine, daily chemical, food, chemical and other fields of products.

  • Item NO.:

    MZH-TFS
  • Product Origin:

    Guangzhou China
  • Color:

    Stainless steel 304/316
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 working days
Products Description

Semi automatic medical ointment aluminum tube filling and sealing machine


Customized And OEM Service Available

Aluminium Tube Filling And Sealing Machine

Details introduced

1. This semi automatic medical ointment Aluminum Tube Filling And Sealing Machine is adopts closed and semi-closed filling paste, liquid and seal without leakage. The filling weight and volume are consistent.Such as: piyanping, ointment, toothpaste, hair dye, shoe polish and other materials filling and sealing.

2. This Ointment Filling And Sealing Machine filling volume is easy to adjust, fast, beautiful appearance and compact structure.Tube seat adjustable tube seat can be adjusted according to the size of filling hose.

3. All parts in contact with materials are made of stainless steel (304 in common use, 316L in medical use).

4. Unique valve body structure, realize the paste dual-use, medicine, daily chemical, fine chemical industry and other industries ideal practical, economical filling equipment.

Technical parameters

Equipped with device name aluminum tube filling and sealing machine (automatically to mark)

Compressed air: 0.6 ~ 0.7 MPa

Filling range: 2 ~ 150 ml

Gas consumption: 0.2 cubic/minute

Filling accuracy: less than 1%

Material: parts contact with material: SUS304

Sealing ring material: teflon

Bucket capacity: 30 l

Production capacity: 10 ~ 45 only/minute

Quantitative filling way: measuring cylinder filling

Dimension: 1130 * 750 * 1680 mm

Power supply voltage:220 v ~ 50hz380V 3phases

Equipment weight: 250 kg


Main parts list

1. The motor nanjing China (1.1 KW)

5. Stepper motor VEXTA (optional)

2. The frequency converter Watson

6. Stepping drive VEXTA (optional)

3. The proximity switch autonics

7. Electromagnetic valve, a guest

4. The color code sensor Germany SICK (optional)

8. Chint button switch
