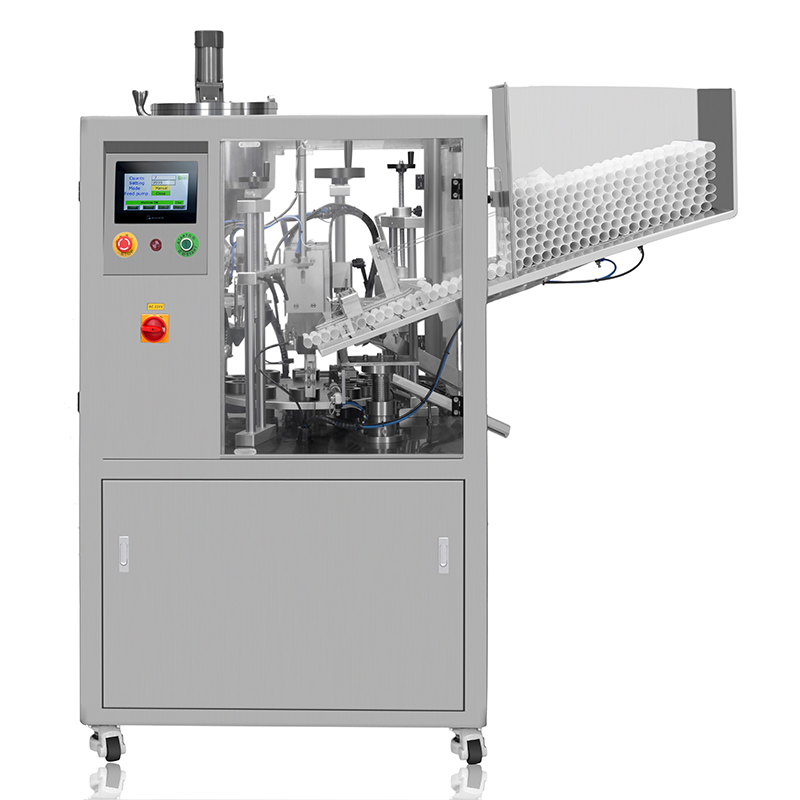

Automatic new style filling and sealing machine

The Filling and Sealing Machine is characterized by reasonable structure, complete functions, convenient operation, accurate loading, stable operation and low noise. It is an ideal filling and sealing equipment for aluminum tube, plastic tube and composite tube in cosmetics, pharmaceutical, food, adhesive and other industries, which meets the requirements of GMP.

  • Item NO.:

    MZH-SFT
  • Payment:

    D/A D/P T/T L/C
  • Product Origin:

    Guangzhou China
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 Working Days
Products Description

Automatic new style filling and sealing machine



Customized And OEM Service Available


Filling and sealing machine


Features

1. Complete the whole process of pipe supply, benchmarking, inert gas filling (optional), filling, tail sealing, coding and finished product export automatically.

2. High precision benchmarking system reduces the error range of tube color.

3. The adjustment position is external and the position scale is digital display, which is fast and accurate (suitable for multi specification and multi variety production).

4. The integration of machine, light, electricity and gas can realize the full-automatic functions such as no filling without pipe, insufficient supply pipe, low air pressure, automatic display (alarm), automatic shutdown when opening the protective door, etc.

5. The same machine can be equipped with different molds to realize the filling and sealing of metal pipe, plastic pipe and composite pipe of different specifications.


Technical parameters

              Model
MZH-S
Power supply
380(220)V/50Hz
Air supply
0.6-0.8Mpa
Air consumption
< 0.6 m3/min
Filling Volume
10-50ml
Volume precision
<±5%
Productivity
25-30pcs/min
Tube Diameter
Ø16-50mm
Dimension
1100*790*1500mm
Weight
260kg
