Semi automatic plastic bottle linear labeling machine

Labeling machine products are divided into linear labeling machine and rotary labeling machine

  • Item NO.:

    MZH-L
  • Payment:

    T/T L/C D/P
  • Product Origin:

    Guangzhou China
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 Working Days
Products Description

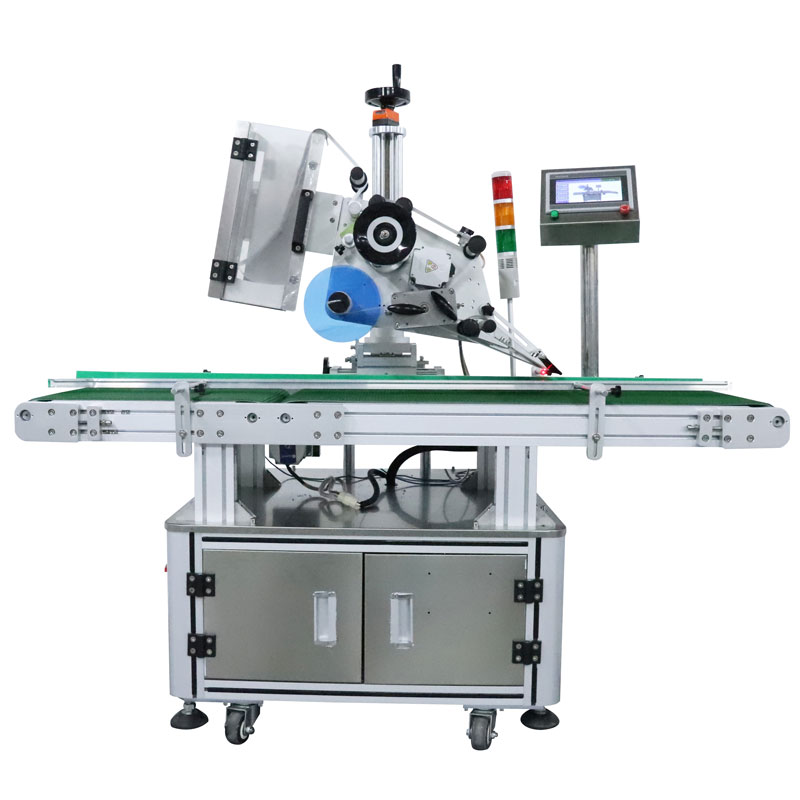

Semi automatic plastic bottle linear labeling machine

Customized And OEM Service Available

Labeling Machine

Machine introduction

The label is attached to the box when the labeling wheel and the box move at the same speed. When the conveyor belt reaches a specific position, the driving wheel of the label belt will accelerate to the speed matching the conveyor belt, stick the label, and then decelerate to stop.Since the label may slide, it has a registration mark on it to ensure that each label is placed correctly. The registration mark is read by a sensor. During the deceleration phase of the label belt, the driving wheel will adjust its position to correct any position error on the label belt.


Technical parameters

Type

MZH-L

Production speed

1-30m/min

Labeling accuracy

±1mm

Labeling max width

120 mm

weight

150KG

Label inner diameter

Φ76.2mm

Label outer diameter

Φ350mm

Outline size

1410x 700x 1400mm

Using power

220 V 50Hz 800W

A free consultation
