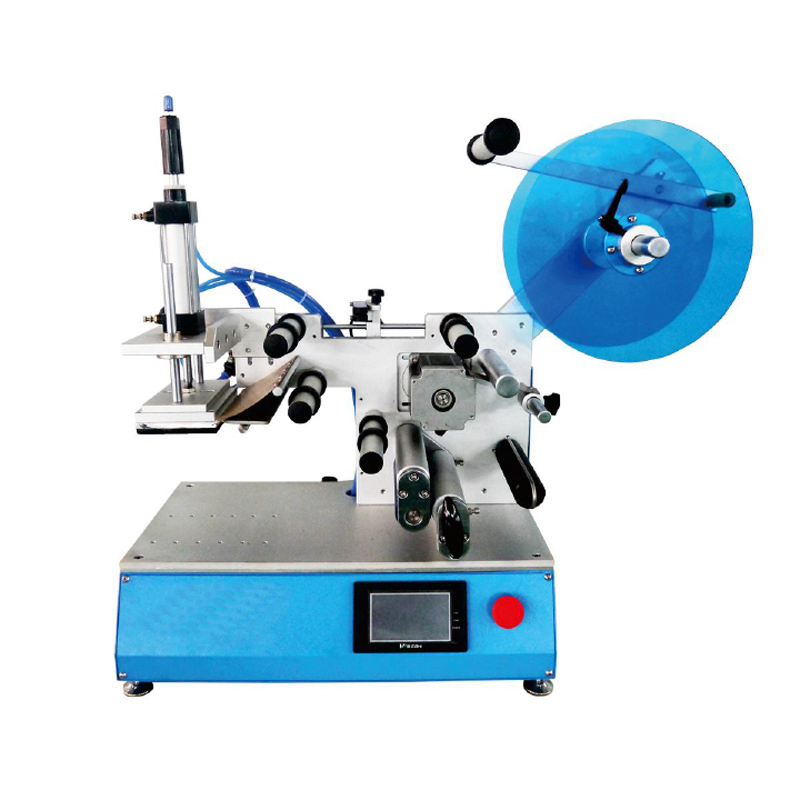

Semi automatic flat bottle box adsorption labeling machine

Application Industry: This Semi automatic Labeling Machine widely used in cosmetics, food, toys, daily chemical, electronics, medicine and other industries.

  • Item NO.:

    MZH-L
  • Payment:

    T/T L/C D/P D/A Western Union MoneyGram
  • Product Origin:

    Guangzhou China
  • Color:

    SS
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 working days
Products Description

Semi automatic flat bottle box adsorption labeling machine

Customized And OEM Service Available

Labeling Machine


Scope of application

The Flat Bottle Labeling Machine applicable labels: stickers, adhesive film, electronic monitoring code, bar code and so on.

Adsorption Labeling Machine applicable Products: Products that need to be labeled on flat, curved, circumferential, concave, convex or other surfaces

Examples are: shampoo flat bottle labeling, packing box labeling, bottle cap, plastic shell labeling, etc.

Functional characteristics

1. Powerful function, can be used for labeling of various workpiece's plane, arc surface, concave plane, can be used for labeling irregular workpiece;

2. The standard is accurate and stable. PLC + subdivision stepping motor is used to drive the marking and send the standard accurately. The feeding mechanism is equipped with braking function to ensure the bandage is tight and the label detection is accurate.

3. Strong and durable, circuit and gas separately arranged, air purification device, to avoid air moisture damage to electrical appliances, extend the life of equipment; the whole machine adopts advanced aluminum alloy and stainless steel materials, solid quality;

4. Easy adjustment, adjustable function of high and low stroke, labeling of different height products, no need to change fixtures repeatedly.

5. Beautiful appearance, using the bottom paint electric box, with stainless steel and high-grade aluminum alloy, beautiful and generous, upgrade equipment grade;

6. optional function: thermal code / spray code function (customized according to customer requirements).


Technical parameters (the following are technical parameters of standard type, other special requirements and functions, which can be customized).

Model


Label out speed

5~15 m/min

Applicable label length

15~100mm

Labeling speed

20~45 pcs/min

Applicable label width

15~150mm

weight

48 kg

Applicableproductlength

20~200mm

Voltage

220V 50Hz

Applicableproduct width

20~150mm

power

500 w

Applicable product height

0.2~120mm

Air pressure

0.4~0.6Mpa

Applicable marking outer diameter

Ø280mm

Labeling method

Suction label

Applicable to marking inner diameter of volume

Ø76mm

equipment size

850*450*800mm

Labeling accuracy

±0.5mm
