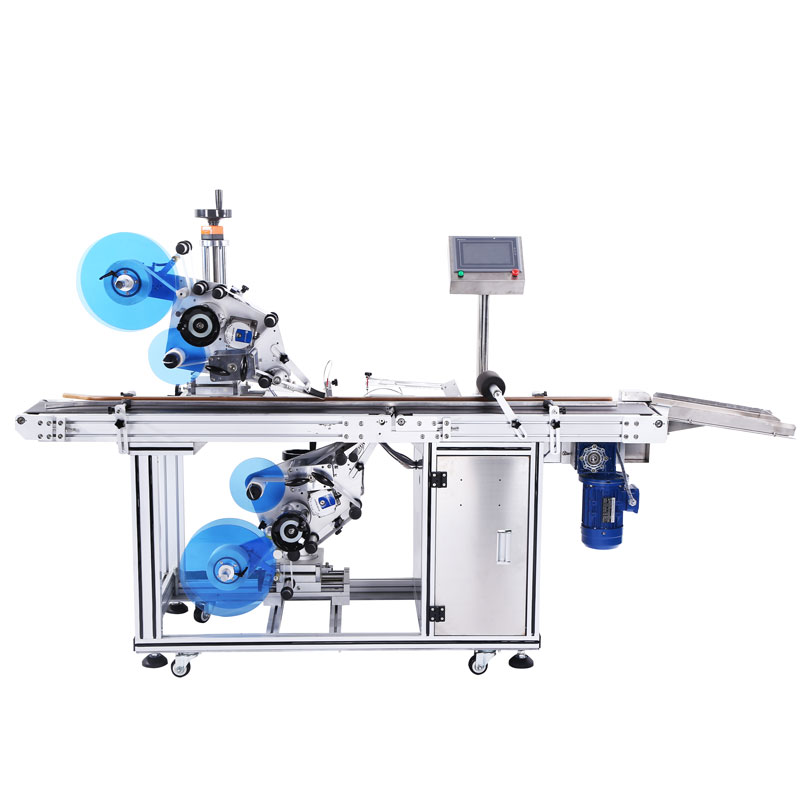

Automatic up and down plane labeling machine

The core working principle of Plane Labeling Machine: the sensor detects that the product is in place or the foot signals that the product is in place, the suction head that sucks the label descends to label and re label, and then returns to the original position to adsorb the next label, waiting for the next labeling signal, and the labeling action of a label is completed.

  • Item NO.:

    MZL
  • Payment:

    T/T D/A D/P L/C
  • Product Origin:

    Guangzhou China
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 Working Days
Products Description

Automatic up and down plane labeling machine

Customized And OEM Service Available


Labeling Machine

Scope of application

1. Scope of application: self adhesive label, self adhesive film, electronic supervision code, bar code, etc;

2. Applicable products: products requiring labels to be attached on flat, arc, circular, concave, convex or other surfaces;

3. Application industry: widely used in cosmetics, food, toys, daily chemicals, electronics, medicine and other industries;

4. Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.


Technical parameters

Type

MZH-L

Production speed

1-30m/min

Labeling accuracy

±1mm

Labeling max width

120 mm

weight

150KG

Label inner diameter

Φ76.2mm

Label outer diameter

Φ350mm

Outline size

1410x 700x 1400mm

Using power

220 V 50Hz 800W
