The machine adopts 316L stainless steel plunger metering pump to perform filling, and integrates automatic upper cover, automatic rotary (rolling) cover and electrical machine. It is economical and practical and covers a small area. It is widely used in liquid packaging in pharmaceutical, food, pesticide, chemical, cosmetics and other industries, which fully meets the requirements of GMP.
Item NO.:
MZH-FPayment:
T/T L/C D/A D/PProduct Origin:
Guangzhou ChinaShipping Port:
HuangpuLead Time:

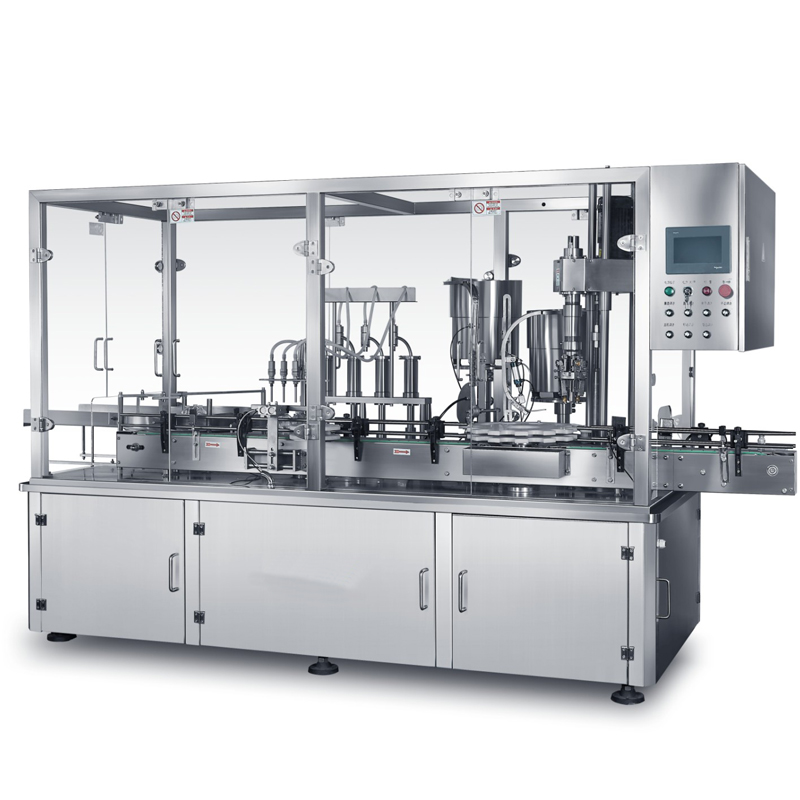

35 Working DaysPlastic bottle glass bottle filling machine capping machine integrated machine
Customized And OEM Service Available
Machine features
1. PLC control system frequency conversion speed regulation, high degree of automation
2. The filling needle is designed with anti drip device. During filling, it sneaks into the bottle bottom to fill and rise slowly to prevent foaming
3. Air claw screw cap head, with adjustable tightness, without damaging the bottle and cap; Optional servo motor drive, adjustable torque, flexible design of capping head, convenient adjustment, and can be designed to pull drum cover
4. Optional cover storage and lifting mechanism, reverse cover identification system and nonconforming product removal device
5. The whole machine can be applied to bottles of different specifications. It is easy to adjust and can be completed in a short time
6. The whole machine is designed according to GMP requirements.
Technical parameter
|
Product model |
YGS16/8 |
YGS12/8 |
YGS8/4 |
YGS6/1 |
YGS4/1 |
|
Number of filling heads |
16 heads |
12 heads |
8 heads |
6 heads |
4 heads |
|
Number of capping heads |
8 heads |
8 heads |
4 heads |
1 head |
1 head |
|
Filling range |
20-1000ml |
||||
|
Ideal filling range |
20-500ml |
||||
|
Optional cover type |
Anti theft cover, threaded cover, Ropp aluminum cover |
||||
|
Filling speed bottle / min |
100-120 |
90-120 |
60-80 |
45-50 |
40-50 |
|
Filling Precision |
≤±1% |
||||
|
Qualified rate of capping |
≥99.8% |
||||
|
Power Supply |
220V 50/60Hz |
|
|
||
|
Power consumption |
≤2.2Kw |
≤2.2Kw |
≤1.2Kw |
≤1.2Kw |
≤1.2Kw |
|
Compressed air pressure |
0.4-0.6Mpa |
||||
|
Net weight |
2000kg |
2000Kg |
1200Kg |
1000kg |
800kg |
|
Overall dimension (mm) |
3600×1000×1800 |
3600×1000×1800 |
3000×1000×1800 |
2800×1000×1600 |
2500×1000×1600 |
