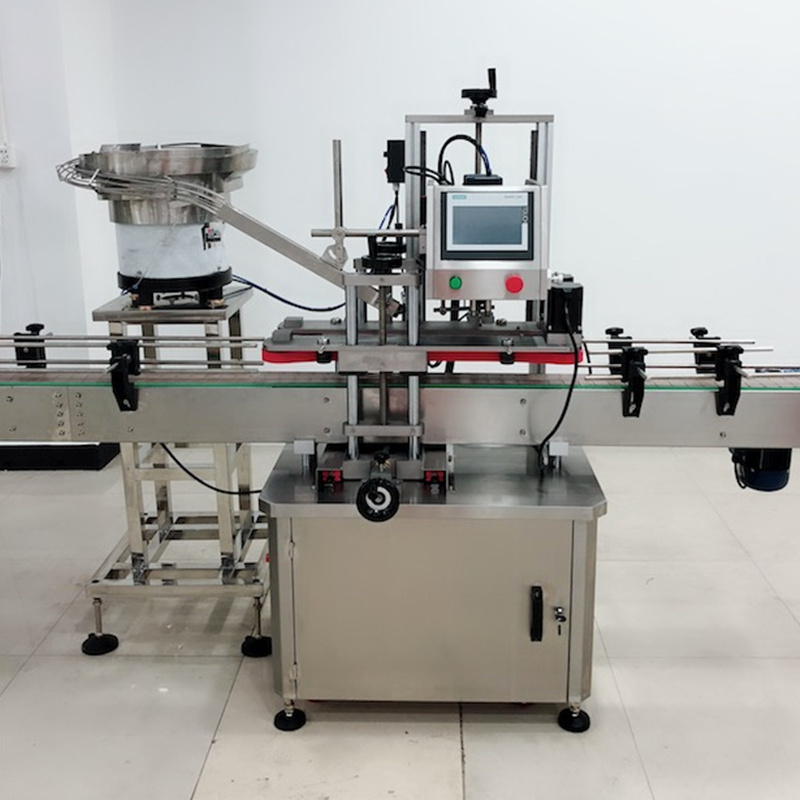

Automatic cap loading and capping with Siemens touch screen operation

This automatic cap loading and capping with Siemens touch screen operation is suitable for food, beverage, chemical, pesticide, cosmetics and other bottle type capping

  • Item NO.:

    MZH-C
  • Payment:

    T/T D/P D/A L/C MoneyGram
  • Product Origin:

    Guangzhou China
  • Color:

    Stainless steel 304/316
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 working days
Products Description

Automatic cap loading and capping with Siemens touch screen operatio

Customized And OEM Service Available

Automatic Capping Machine



DESCRIPTION

1.This Automatic cap loading and capping with Siemens touch screen operation can be suitable for many different dimension and material of bottle clamp cap by simple adjusting . Besides, ere is no need to replace any assembly.


2.This automatic capping machine With intelligent PLC and touch screen control system, stable and reliable work, easy operation and maintenance, widely used in food, beverage, chemical, medicine and other industries of plastics, glass bottles.


TECHNICAL SPECIFICATIONS

Capping diameter

Φ16mm-φ55mm

Max bottle height

300mm

Voltage

220V50Hz

Pot speed

30-45pcs/min

Overall Dimension

5300mm×450mm×600mm

Capping torsion

4-8KG/CM

Lock cover range

16-50mm

weight

240KG

Using power

240V 50Hz 120W
