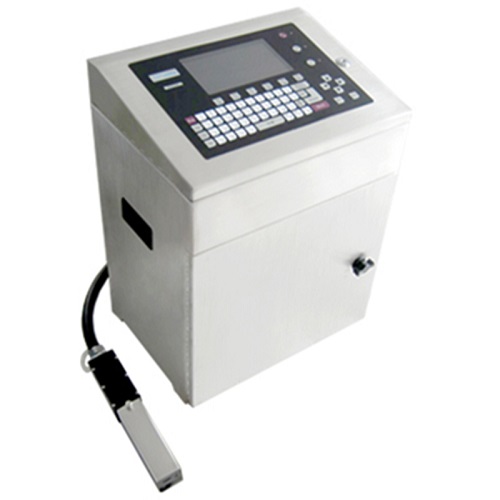

New style date code inkjet printer machine

This Inkjet Printer Machine adopts imported core components from power system to electronic storage and operating system to ensure safe and stable operation of the equipment.

  • Item NO.:

    MZH-C
  • Payment:

    T/T D/P D/A L/C MoneyGram
  • Product Origin:

    Guangzhou China
  • Color:

    Stainless steel 304/316
  • Shipping Port:

    Huangpu
  • Lead Time:

    35 working days
Products Description


New style date code inkjet printer machine

Customized And OEM Service Available


I.Advanced stability and reliability

More humanized operating system:

This Inkjet Printer 7-inch color LCD, Chinese and English interface display, make human-computer dialogue more fluent. 9 ink filter system: Ensure the cleanness of ink and diluent.


Independent cleaning ink path design:

This Date Code Printer Machine four kinds of automatic cleaning functions including nozzle, spray gun (cavity) and recovery tank, as well as on-off automatic cleaning, prevent the blockage to a large extent, ensure the smooth operation of the equipment, and improve the stability of the equipment operation.


Independent recycling system:

Instead of Venturi recovery system, independent recovery pump design ensures more stable ink pressure.


II. Technical Specifications


Model

MZH-C2021

typeface lattice constitute

5×5  7×58×8  12×1216×16  24×24  (customized 32×32)

Spray-print lines

Available choose 1, 2,3 (4 customized)

Spray-print speed

1600 characters/second (7×5)

On Conveyor speed

4meters/second (7×5)

Spray direction

  360° All round jet printing

Printing material

paper, plastic, metal, glass, rubber, wood and other solid materials.

Type of printing characters

Arabic numerals, Chinese, English, graphic trademarks, etc.

Other functions

free sliding two-way inkjet printing function.

Spray printing function

1. A variety of mixed arrangement, sequence number, batch number, shift number, product count display and spray printing.

2. Date arrangement, real-time clock automatic change display printing

3. Information delay printing, repeated printing storage printing, reverse font adjustment printing.

4.1-9 times of character bold spray printing, 1-3 times of spacing adjustment, font height and width adjustment.

Mohist system

Power source

Single Mic (USA) gear pump + cleaning pump + recycling pump

Signal trigger mode

Sensor trigger, continuous automatic trigger, delay automatic trigger, synchronous meter trigger, external signal source trigger

Automatic cleaning function

 on-off automatic cleaning, spray chamber automatic cleaning and other four automatic cleaning modes

Viscosity control

automatic adjustment

Consumables addition:

 automatic addition and deployment

Available inks

basic ink, high adhesion, high temperature and pigment red, yellow, blue ink, invisible ink

Input display

7 inch color LCD, Chinese English interface text display

Communication interface

RS-232 interface, USB import interface

Working environment requirements

Working temperature / humidity

5-40°C Advise environmental temperature between 15°C and 25°C,10-90%RH(Advise 10-70%RH non-condensing)

Supply voltage

220V± 20V (AC circuit)

Power

100W(VA)

Chassis specification

Protection level

IP55

Size

390×390×520mm

Nozzle

243×43×39mm

Control panel

Touch film button

Texture of material

304Stainless steel

Catheter length

3Meters
