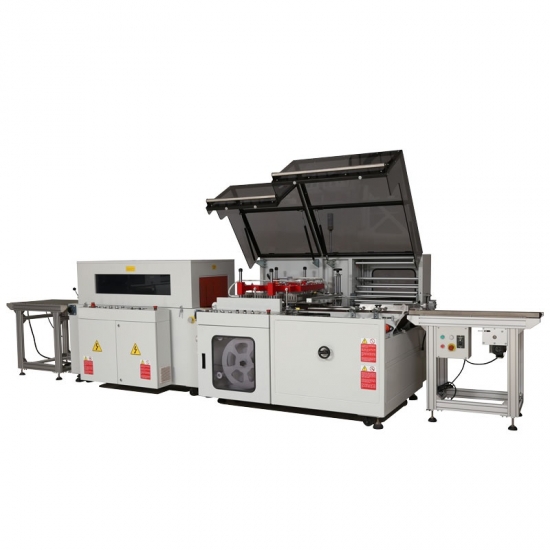

Automatic Heat Pof Pe Pvc Shrink Film Wrapping Packaging Machine

Fully Automatic Heat Shrink Wrapping Packing Machine are the optimal shrink film applicator for infinate length product .


  • Item NO.:

    MZH-P
  • Payment:

    L/C,D/A,D/P,T/T
  • Product Origin:

    Guangdong, China
  • Color:

    Stainless steel
  • Shipping Port:

    haungpu,guangzhou
  • Lead Time:

    35 wroking days
Products Description

Automatic Heat Pof Pe Pvc Shrink Film Wrapping Packaging Machine

Customized And OEM Service Available

I. Product Description:

 Film shrink wrap machine with heat tunnel is ok for packing many kinds products. Such as commodities, cosmatics products, some goods in small box,book, wooden board and so on

A heated arm is raised and lowered as products pass underneath. Shrink film is then heated and sealed around the product.

Shrink wrap packaging machine is mainly use in foods industries,supermarket, a small shop, even other industries.

box shrink wrap machine

II. Technology Parameters of Automatic Shrink Wrap Machine


Mechanical dimensions: L1685*W828*H1480mm Power supply: 1PH 220V 50HZ 2.5KW

Use External Gas Source (kg/cm²): 6.0-8.0 (Provided by Factory, Connected to Outer Diameter 10mm Trachea)

Maximum packing size: length + height < 430mm wide + height < 400mm Packing speed: 0-15 (piece/minute) (varying according to product size) Horizontal height of feed belt: 800+50mm


III. Feature of box shrink wrap machine


Customized Shrink Tunnel Length

High  Temperature Resistance and Stickness Proof

Anti-Cutting Device

Up to 40 pcs/min

NO  Operator

Stainless Steel Heating Tube




IV. automatic sealing and cutting machine

Items

Details





Film feeding system

Electric machinery


packaging film uniform, stable

Induction switch

"OMRON" Brand, Accurate Control of Film Delivery

Roller

Nickel plating on steel drum

Punch

Adjustable pinhole number





Conveying system

Belt

PU Conveyor Belt, Increase Close Connection Device

Electric machinery

"ZD" brand, it ensures smooth conveying with automatic conveying function


Product testing

"BANNER" brand, For accurate and sensitive detection of product positioning in the process of delivery









Sealing system

Heat source

Stainless steel heating tube, fast heating, long service life


Sealing knife

Applying an alloy steel knife with anti-sticking and high temperature resistance, the knife is coated with Teflon non-stick layer outside.

Sealing knife temperature control


"OMRON" Digital Display Temperature Controller and Thermal Sensitivity Should be Controlled, Temperature Adjustable 0-200 C


Seal protection

"OMRON" effectively prevents wrapping objects from being sliced by mistake and ensures operator's safety.


Cylinder

"Longyun" Brand, Accurate Control of Sealing Speed, Guarantee Sealing Quality



Recovery system

Electric machinery


"ZD" Brand, Guarantee Accurate and Uniform Recycling of Waste

Induction switch

Using "SICK" to accurately control waste recovery time





Control system


PLC


"OMRON" Brand


Intermediate relay


"OMRON" Brand

Emergency switch

"SCHNEIDER" Brand

Power switch

"SCHNEIDER" Brand
