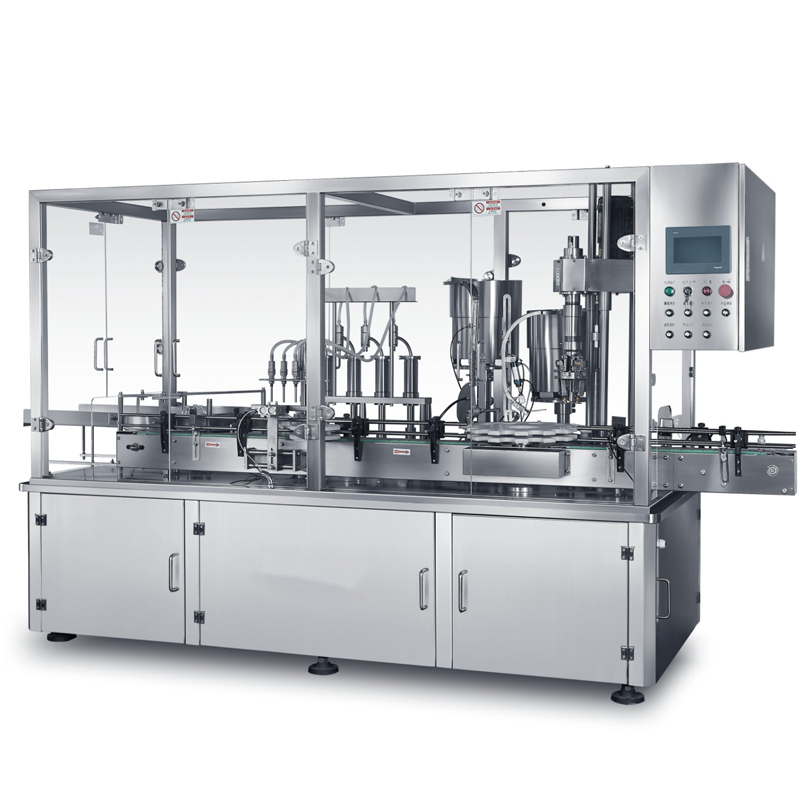

MZH Fillng Stoppling and Capping Integrated Machine

Linear filling and capping machine series is a new product developed by our company to meet the market demand and introduce foreign advanced technology.

Item NO.:
MZH-F
Payment:
T/T L/C D/A D/P
Product Origin:
Guangzhou China
Shipping Port:
Huangpu
Lead Time:
35 Working Days

Products Description

MZH Fillng Stoppling and Capping Integrated Machine

Customized And OEM Service Available

Filling Capping Machine

Performance characteristics

1. Two in one filling (rolling) cap, small floor area, servo drive, man-machine interface, easy operation and fast adjustment;

2. The plunger metering pump is used for filling, which is suitable for all kinds of viscous liquids with high precision; The structure of the pump adopts quick connection disassembly mechanism, which is convenient for cleaning and disinfection. Online CIP / SIP cleaning and sterilization system can be selected;

3. The piston ring of plunger metering pump is made of silicone rubber, tetrafluoroethylene or other materials according to the industry and liquid composition, and ceramic materials are used for special occasions. The filling principle can also be peristaltic pump, negative pressure type, weighing type, self flow type, reflux defoaming type, etc;

4. PLC control system frequency conversion speed regulation, high degree of automation.

Technical parameters

Product model	MZH16/8	MZH12/8	MZH8/4	MZH6/1	MZH4/1
Number of filling heads	16 heads	12 heads	8 heads	6 heads	4 heads
Number of capping heads	8 heads	8 heads	4 heads	1 head	1 head
Filling range	20-1000ml
Ideal filling range	20-500ml
Optional cover type	Anti theft cover, threaded cover, Ropp aluminum cover
Filling speed bottle / min	100-120	90-120	60-80	45-50	40-50
Filling Precision	≤±1%
Qualified rate of capping	≥99.8%
Power Supply	220V 50/60Hz
Power consumption	≤2.2Kw	≤2.2Kw	≤1.2Kw	≤1.2Kw	≤1.2Kw
Compressed air pressure	0.4-0.6Mpa
Net weight	2000kg	2000Kg	1200Kg	1000kg	800kg
Overall dimension (mm)	3600×1000×1800	3600×1000×1800	3000×1000×1800	2800×1000×1600	2500×1000×1600
