Home Filling Machine hand sanitizing machine automatic bottle filling machine

New Products

hand sanitizing machine automatic bottle filling machine

The bottle filling machine is used of hand sanitizer ,shampoo, Tomato sauce, peanut butter, salad dressing, chili sauce, bean paste, sesame, jam, sauces, pasta sauce and special industry paste filling.

  • Item NO.:

    MZH-FH
  • Payment:

    L/C T/T
  • Product Origin:

    GUANGZHOU,CHINA
  • Color:

    Stainless steel
  • Shipping Port:

    HUANGPU,GUANGZHOU
  • Lead Time:

    15working days
Products Description

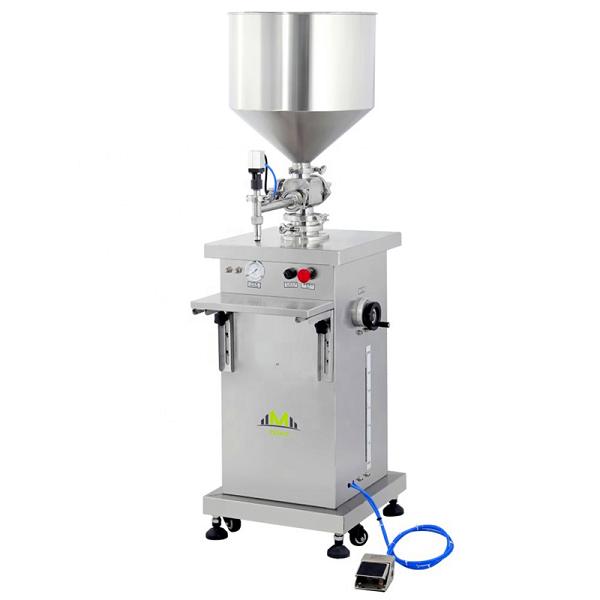

hand sanitizing machine automatic bottle filling machine

customized and OEM available


Filling principle:

Our hand sanitizer filling machine is a semi-automatic piston filling machine, which is driven by a cylinder to extract and eject material. The material flow is controlled by a three-way rotary valve. The stroke of the cylinder can be controlled by the reed switch. The filling volume can be adjusted, You can adjust the intake air cylinder to achieve rapid or slow filling.



hand sanitizer machine price



Specifications :

Mobel

MZH

Voltage

AC220V

Power

20W

Filling range

100-5000ml

Production speed

5-30 BOTTLES/MIN

Air pressure

0.4-0.6mpa

Suit bottleneck drameter

≥50mm

Filling head

1

Note:Contact with the materials are made of304 stainless steel

  *We also can accord to customer's requirements to design the machine as we can do best.*

Advantage:

1,this filling machine is made of 304 stainless steel, meeting the GMP requirements;

2,Filling range and filling speed can be adjusted;

3,Filling system quick release design, easy to washable after used;

4,Pneumatic components are adoped top-brand pneumatic components;

5,Using PTFE seals and silicone seals (endure high temperature, acid and alkali resistant, and non-toxic environmental protection);

6,Filling mouth anti-drawing, anti-drip design;

7,Quick filling speed,high filling accuracy;

8,Can be used with a variety of equipment, such as plastic cup sealing machine, plastic box sealing machine, plastic bag sealing machine, vacuum packaging machine;

9,Special specifications can be customized
