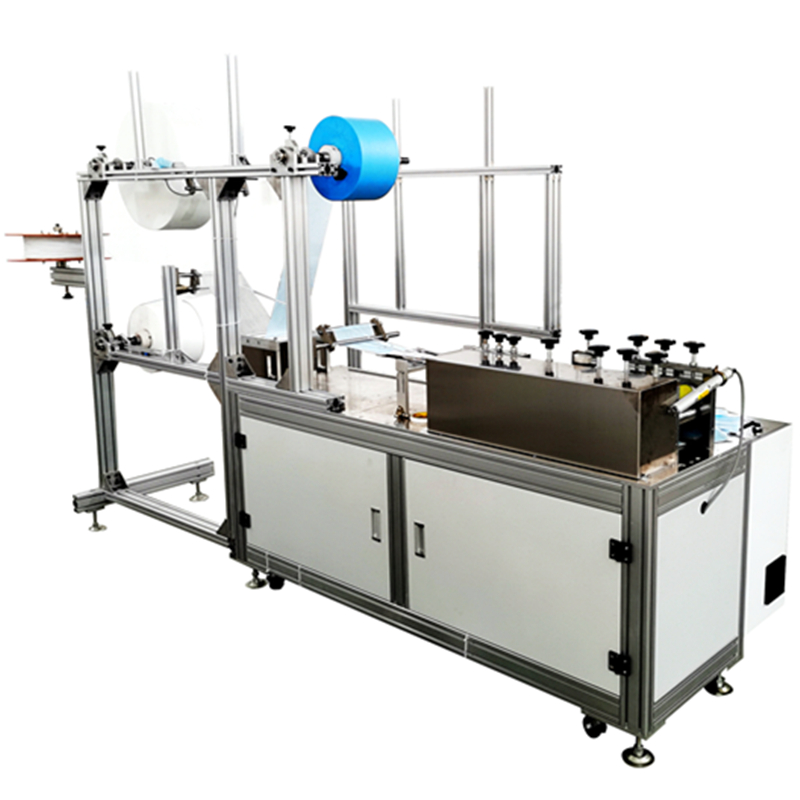

The semi-automatic Mask Making Machine is mainly composed of the feeding group, the folding group, the upper nose bridge group, the welding pulling group and the discharging group.
The whole machine is automatic from raw material to nose line insertion, edge sealing and cutting.
Item NO.:
MZH-MPayment:
T/T D/P D/A L/C MoneyGramProduct Origin:
Guangzhou ChinaColor:
Stainless steel 304/316Shipping Port:
HuangpuLead Time:
35 working days3 layer flat masking machine ultrasonic mask machine mask making machine
Customized And OEM Service Available
Details Introduced
1. This Ultrasonic Mask Machine material cloth frame: manually put three layers of cloth into the material frame, the nose line into, adjust after you can boot.
It can produce 2/3/4 layers of masks. Each shelf is equipped with sensors. When the cloth is not available, it can sense and stop automatically.
2. The Masking Machine Folding shaping group: Feeding according to the shaping shape.
3. Nose feed group: automatically connect the nose line and cut
4. Knurled group: according to the knurled pattern printed and sealed edge, if the customer needs to add LOOG on the mask piece, need to customize knurled in advance.
5. cut out material: according to the length of the need to cut out material
Technical parameters
Equipment size |
L2080mm*W1080mm*H1850mm |
Equipment efficiency |
About 130-180 PCS/min |
Non-woven fabric parameters |
175mm |
Upper level 25g/M2 |
Width 175mm (non-woven) |
Middle level 25g/M2 |
Width 175mm (melt spray non-woven) |
Lower leve 20g/M2 |
Width 200mm (non-woven) |
Nose strip, rol |
width about 3mm, thickness about 0.6~0.8mm |
Ear band outward, 3 layers unlined |
Size 175*95mm |
Equipment weight |
385KG |
