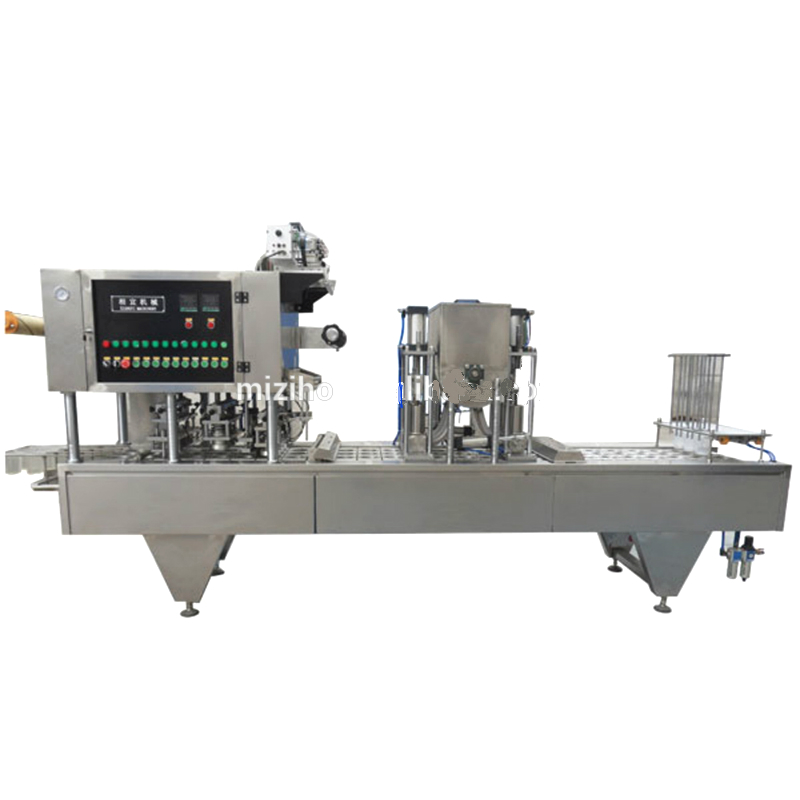

Paper Water jelly yogurt k cup filling and sealing machine

This k cup filling and sealing machine uses Air And Electricity Combination,

Produced with PLC, Pneumatic Control Component And Intelligent Digital Display

High Sealing Strength, Good Sealing And Low Failure Rate.

  • Item NO.:

    MZH-CF
  • Payment:

    L/C T/T
  • Product Origin:

    GUANGZHOU,CHINA
  • Color:

    Stainless steel
  • Shipping Port:

    HUANGPU,GUANGZHOU
  • Lead Time:

    35 WORKING DAYS
Products Description

Automatic Plastic Mineral Water yogurt cup filling sealing machine

Customizd and OEM available


Introduction of yogurt cup filling and sealing machine:

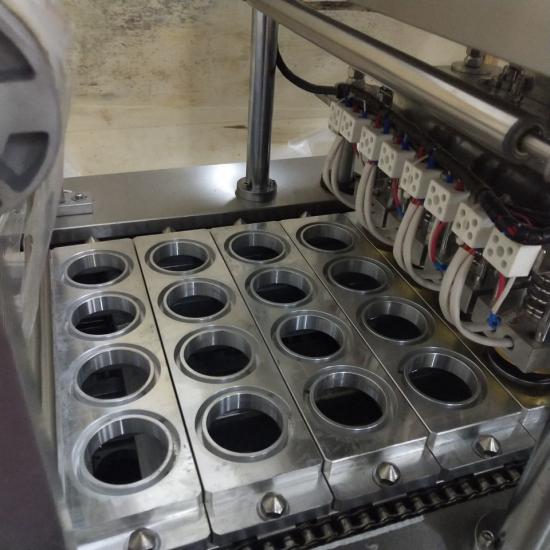

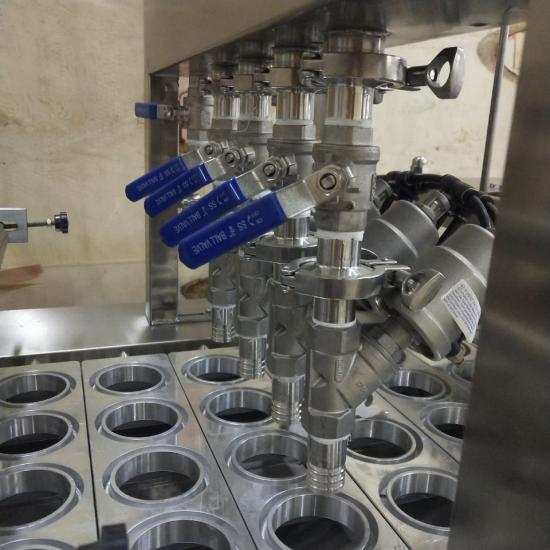

Yogurt cup filling machine is Automatically dropping cup,filling,UV sterilizing, light senor,printing date,sealing, cutting etc. The machine is made of steel and 304 stainless steel with well-known pneumatic components .It has simple construction and easy to operate.cup filling and sealing machine suitable for beverage, such as soil bean, milk, fruit juice, mineral water. And it can automatically do cup setting, filling, photoelectric pattern proofread, sealing, printing date, cutting&discharging.


Main functions of yogurt cup filling and sealing machine:

1.Stable and reliable functions, security and alarming functionsAutomatically dropping cup,filling,UV sterilizing, light senor,printing date,sealing, cutting etc.

2.The cup filling machine is made of steel and 304 stainless steel with well-known pneumatic components .It has simple construction and easy to operate.
3.The machine has high degree of automation, good sealing strength, reasonable structure and high production efficiency. It is suitable for all kinds of imported and domestic aluminum plastic, PP, PE, CPP and other composite packaging materials. (Sterilization, photoelectric tracker and coding machine is optional.)
4.Customized cup molde is welcome.
cup filling and sealing machine


Technical Data of customized ketchup filling machine:

MZH-CF

 Automatic Cup Filling Sealing Machine

Production capacity

1400-2000 Cups / h

Filling volume

50-300 ml

Voltage

380V/50Hz

Air consumption

0.6 m3 /min

Packaging Materials

PP, PE, CPP, Aluminum plastic, etc

Power

4kw

Dimension

1000*1000*1650mm

Weight

250kg


A free consultation

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
