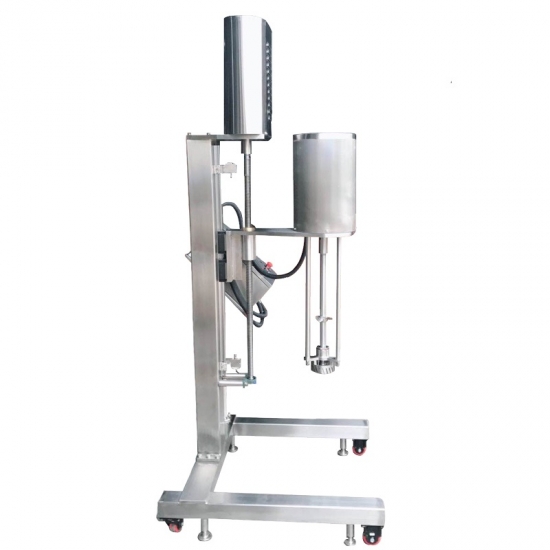

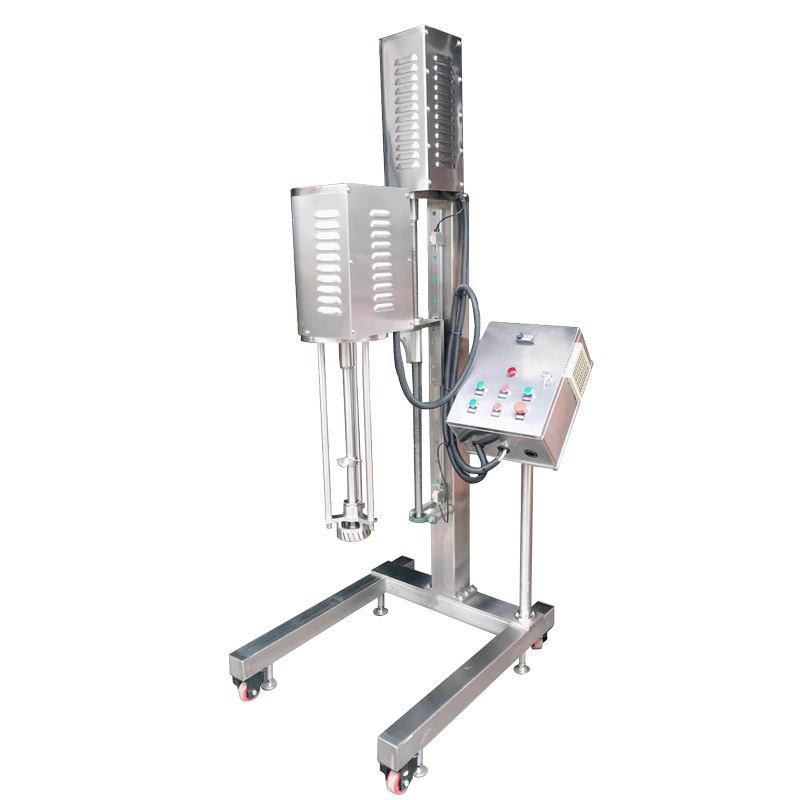

Stainless steel High shear mixer, High shear dispersion emulsifier is an efficient, rapid and uniform distribution of one or more phases in another continuous phase, and in ordinary cases each phase is insoluble.
Item NO.:
MZH-DMPayment:
L/C,D/A,D/P,T/T,Western UnionProduct Origin:
ChinaShipping Port:
haungpu,guangzhouLead Time:
28 working daysHigh shear dispersing homogenizing mixer machine
Customized And OEM Service Available
Product Description:
Due to the strong kinetic energy caused by High Shear Machine speed and high frequency mechanical effect produced by high speed rotation of the rotor, the material is subjected to a strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap between fixed and rotor, so that the High Shear Dispersion Emulsifier insoluble solid phase, liquid phase and gas phase are in phase. Under the joint action of mature technology and proper amount of additives, the emulsification is dispersed uniformly and finely in a moment, and the stable high quality products are finally obtained through high frequency circle cycle.
Characteristics of pipeline type high shear mixer:
1. large capacity, suitable for industrial continuous production on-line;
The 2. particle size distribution is narrow and the evenness is high.
3. provinces, high efficiency, energy saving;
4. the noise is low and the operation is smooth.
5. eliminate the quality difference between batch production.
6. the suction port of homogenizer can directly suck some raw materials into the stator after shearing and then flow out of the pump body.
7. Lab High shear dispersing homogenzier without dead angle, material 100% by dispersing shear;
8. has the function of short distance and low lift.
9. easy to use, convenient maintenance;
10. can realize automatic control.
Technical parameters
|
Powder(KW) |
Litre fall height mm |
Speed rpm |
Mixing volumeL |
Dispersion diameter diametermm |
Weight |
|
3 |
900 |
A; 0-1500 |
50/150 |
150 |
480 |
|
4 |
|
B;0-3000 |
80/200 |
150 |
500 |
|
5.5 |
1000 |
|
100/300 |
250 |
900 |
|
7.5 |
|
|
100/500 |
250 |
930 |
|
11 |
|
|
300/800 |
250 |
1050 |
|
15 |
1200 |
|
300/1000 |
300 |
1200 |
|
18.5 |
|
|
500/1500 |
300 |
1300 |
|
22 |
|
|
500/1800 |
300 |
1500 |
|
30 |
|
|
500/2000 |
350 |
2000 |
|
37 |
|
|
500/2000 |
350 |
2200 |
|
45 |
1400 |
|
800/3000 |
350 |
2500 |
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Stainless steel High Shear Dispersing Homogenizing Mixer, High Shear Dispersion Emulsifier is an efficient, rapid and uniform distribution of one or more phases in another continuous phase, and in ordinary cases each phase is insoluble.
Our stainless steel High Shear Dispersing Homogenizing Mixer, High Shear Dispersion Emulsifier,is an efficient, rapid and uniform distribution of one or more phases in another continuous phase, and in ordinary cases each phase is insoluble.
Our Lab Homogenizer design is novel and advanced, with high output power, high running speed and simple experiment operation. The Emulsification Mixer is high shear homogenzing.
This Horizontal Powder Mixer Machine for cosmetics pharmaceuticals food is use stainless steel horizontal trough mixer, suitable for mixing powder or paste materials in pharmaceutical, chemical, food and other industries.
The Homogenizer Mixer is mainly used for tissue dispersion in the field of biotechnology, sample preparation in the field of medicine, enzyme treatment in food industry, detection of pesticide residues and veterinary drug residues in food, pharmaceutical industry, cosmetics industry, paint industry and petrochemical industry.
The Homogenizer Mixer adopts stainless steel system, which can effectively separate the surface of body protection sample and the included microbial homogeneous sample. The sample is packed in a disposable sterile homogenization bag, which does not contact with the instrument, and meets the requirements of fast, accurate results and good repeatability. It can be widely used in emulsification, homogenization and dispersion of industrial production.
High Speed Homogenizer Mixer is widely used in the production of artificial marble, plastic, photographic film, drugs, recording materials, coatings, dyes, inks, adhesives and other chemical products.
Rotor Pump is a positive displacement pump, its power source is to rely on its own two synchronous reverse rotation of the two fan blades, in the process of rotation in the import place to produce a strong suction, so it can inhale the media needed by customers and transport, rotor pump constantly running, the media will be continuously transported to the place of need.
The essential oil extraction equipment is suitable for the extraction of common oil and aromatic oil from plant branches, leaves, flowers, grass and animal materials. The structure of the equipment is exquisite and the operation is very simple.
Our stainless steel High Shear Dispersing Homogenizing Mixer, High Shear Dispersion Emulsifier,is an efficient, rapid and uniform distribution of one or more phases in another continuous phase, and in ordinary cases each phase is insoluble.
Filling and sealing machine can also be widely used in pharmaceutical, daily chemical, food, chemical and other industries.
The machine adopts 316L stainless steel plunger metering pump to perform filling, and integrates automatic upper cover, automatic rotary (rolling) cover and electrical machine. It is economical and practical and covers a small area. It is widely used in liquid packaging in pharmaceutical, food, pesticide, chemical, cosmetics and other industries, which fully meets the requirements of GMP.
